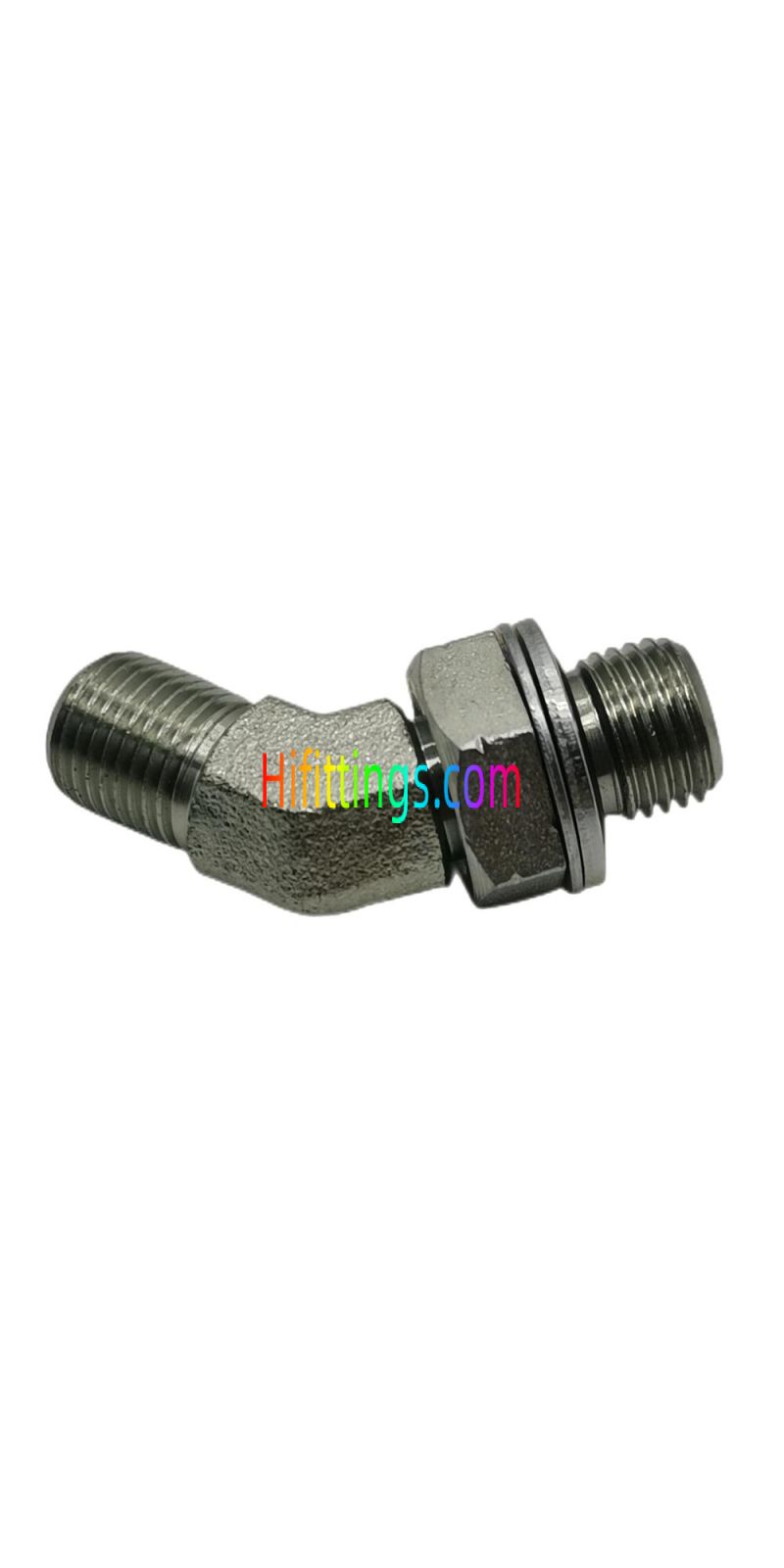

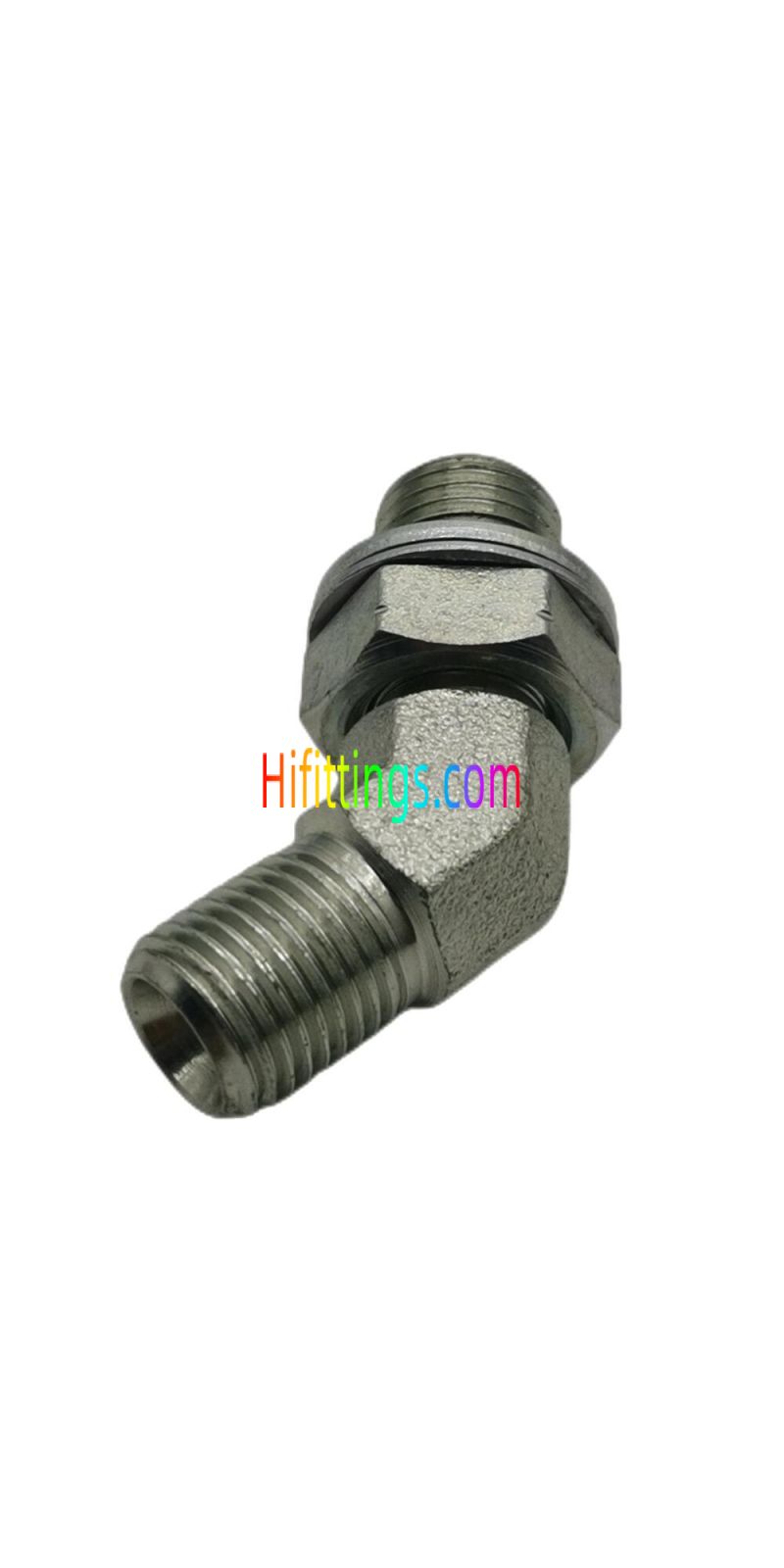

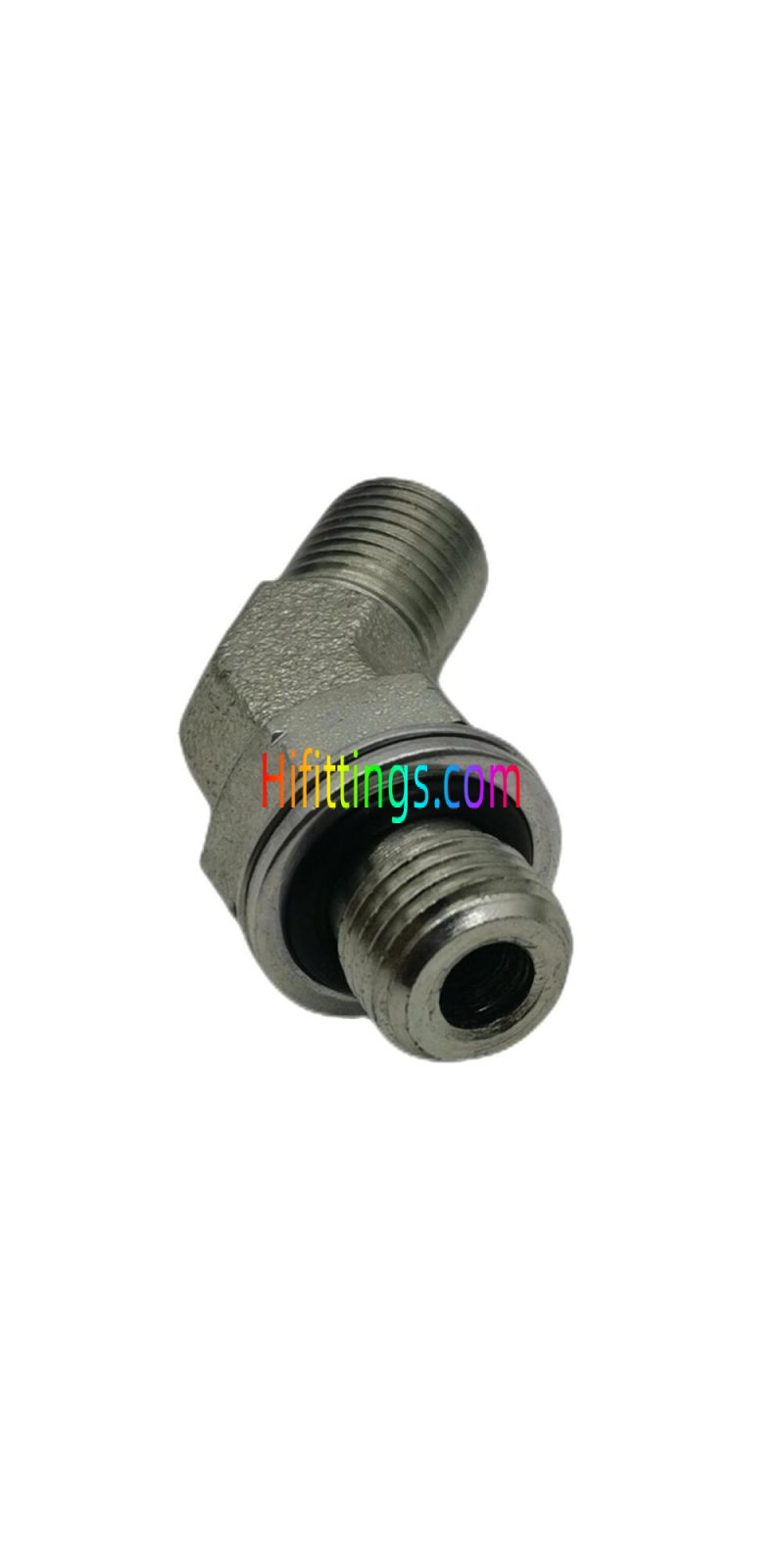

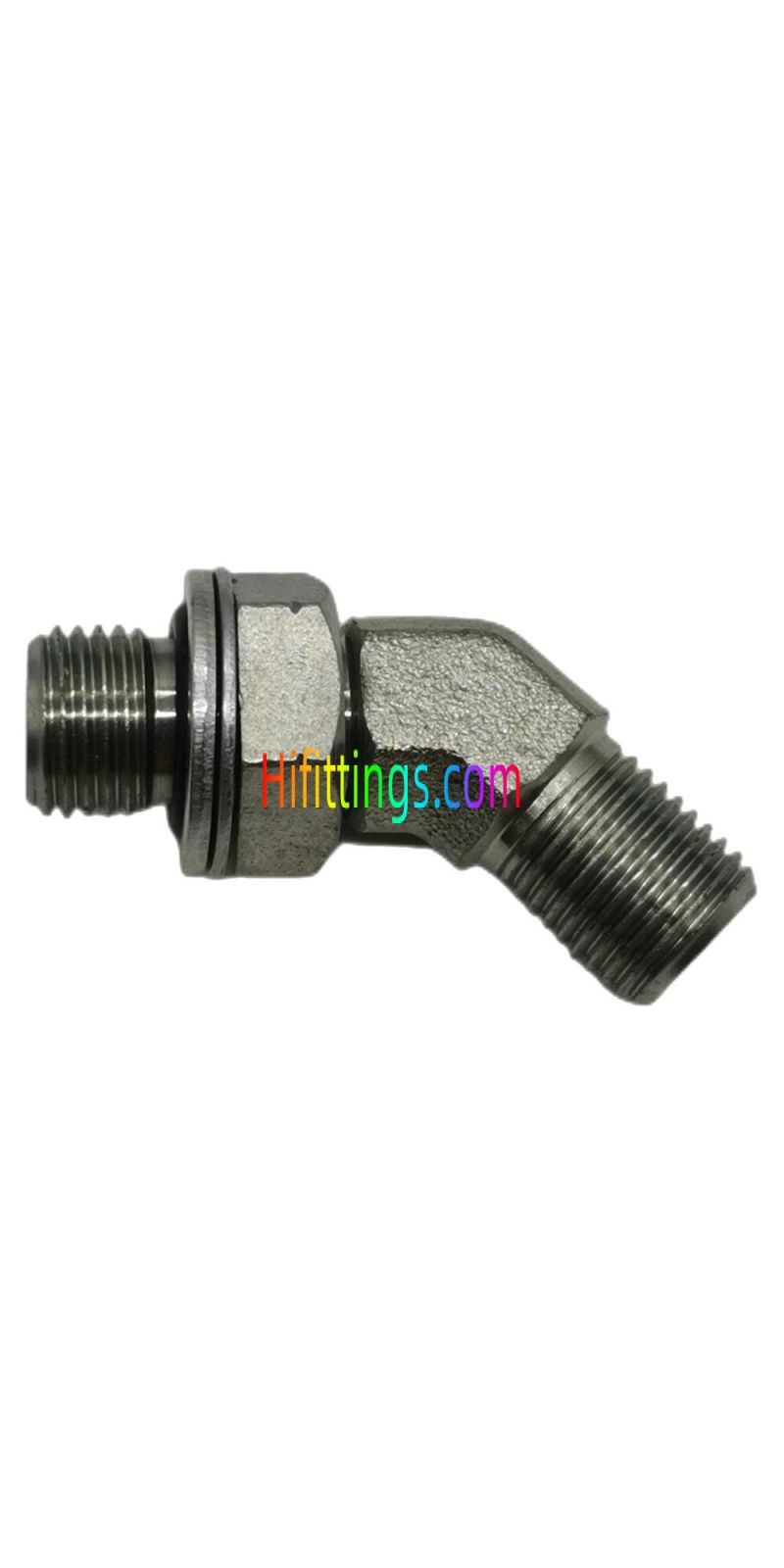

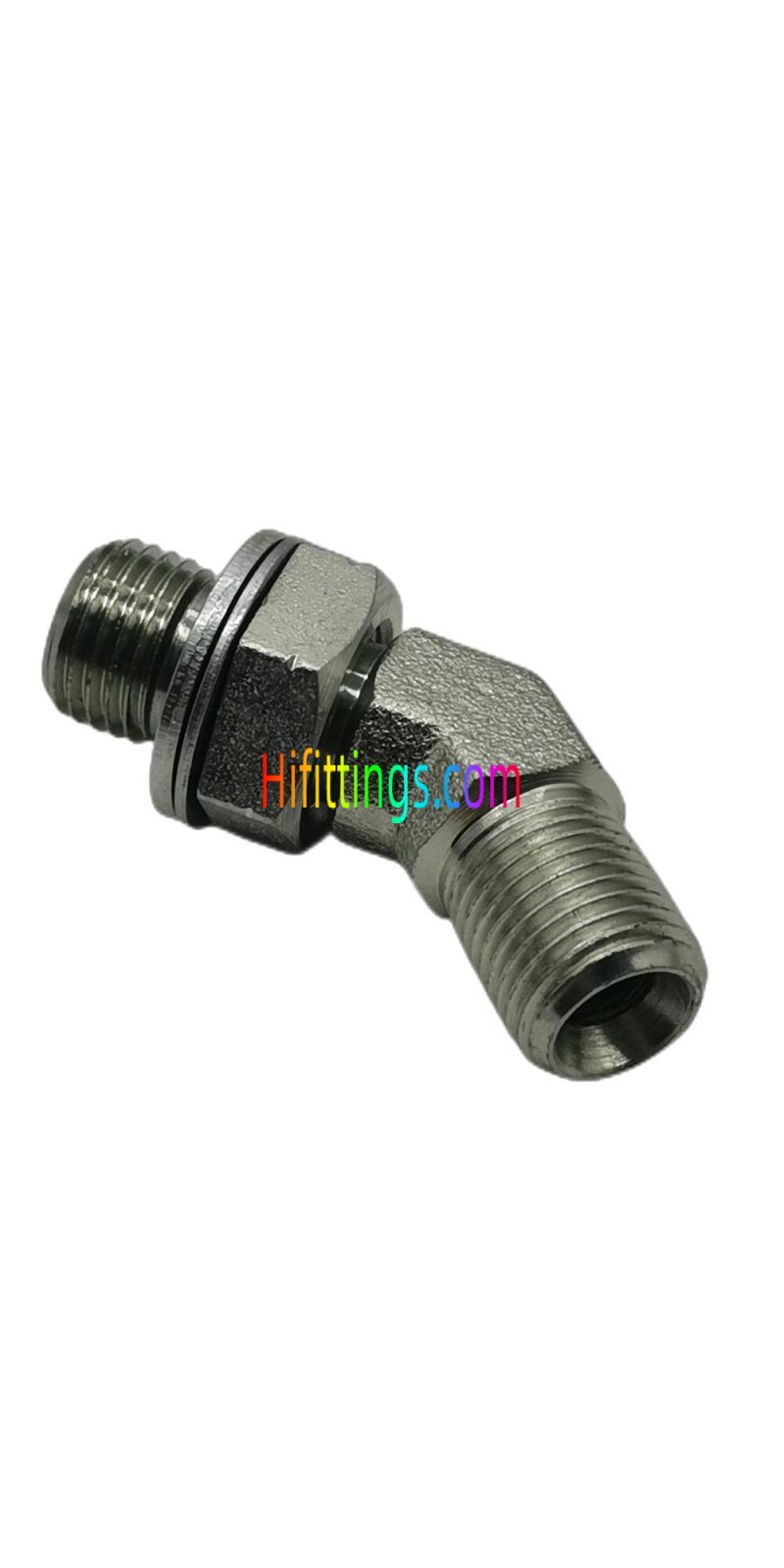

45° Elbow BSP Male 60° Seat / BSP Male O-Ring Adjustable Stud End Hydraulic Fittings
|
Part NO. |
E |
F |
F End |
A |
B |
S1 |
S2 |
Working Pressure bar |
|
1BG4-04OG |
G1/4"X19 |
G1/4"X19 |
O111 |
22 |
28 |
14 |
19 |
PN345 |
|
1BG4-04-06OG |
G1/4"X19 |
G3/8"X19 |
O113 |
21 |
30 |
16 |
22 |
PN345 |
|
1BG4-04-08OG |
G1/4"X19 |
G1/2"X14 |
O115 |
22.5 |
36 |
22 |
27 |
PN345 |
|
1BG4-06OG |
G3/8"X19 |
G3/8"X19 |
O113 |
21 |
30 |
16 |
22 |
PN345 |
|
1BG4-06-08OG |
G3/8"X19 |
G1/2"X14 |
O115 |
23.5 |
36 |
22 |
27 |
PN345 |
|
1BG4-08OG |
G1/2"X14 |
G1/2"X14 |
O115 |
27 |
36 |
22 |
27 |
PN345 |
|
1BG4-12OG |
G3/4"X14 |
G3/4"X14 |
O119 |
32 |
42 |
27 |
32 |
PN275 |
|
1BG4-12-16OG |
G3/4"X14 |
G1"X11 |
O217 |
32.5 |
44 |
33 |
41 |
PN205 |
|
1BG4-16OG |
G1"X11 |
G1"X11 |
O217 |
34 |
44 |
33 |
41 |
PN205 |
|
1BG4-20OG |
G1.1/4"X11 |
G1.1/4"X11 |
O222 |
38.5 |
47.5 |
41 |
50 |
PN170 |
|
1BG4-24OG |
G1.1/2"X11 |
G1.1/2"X11 |
O224 |
44 |
51.5 |
48 |
55 |
PN105 |
|
Note 1. F end is connected with DIN 3852 port. 2. PN = Nominal Pressure |
||||||||
| Форма | Elbow |
|---|---|
| Тип крепления | Cone |
| Тип резьбы | Male |
| Connection Type | BSP |
