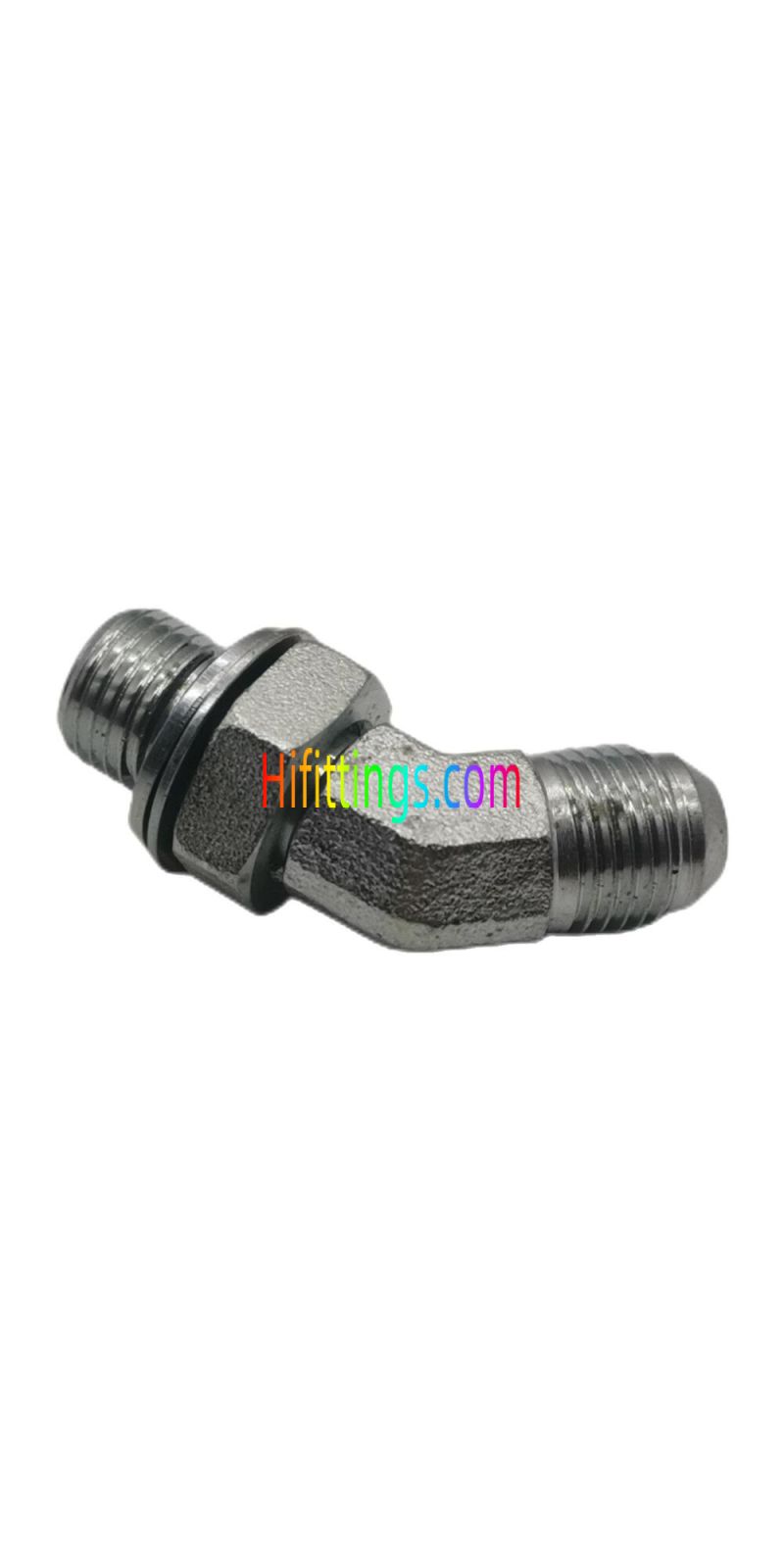

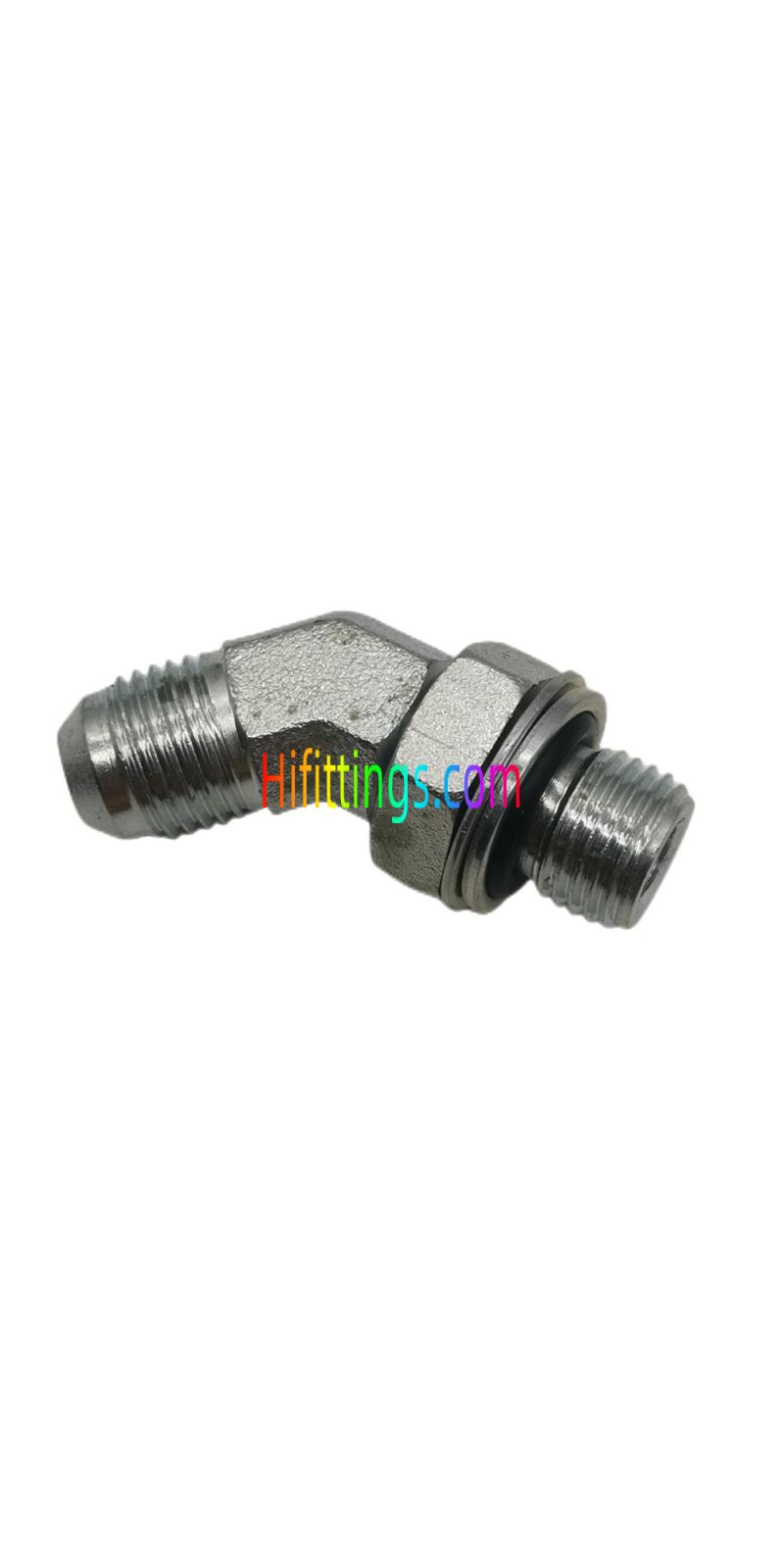

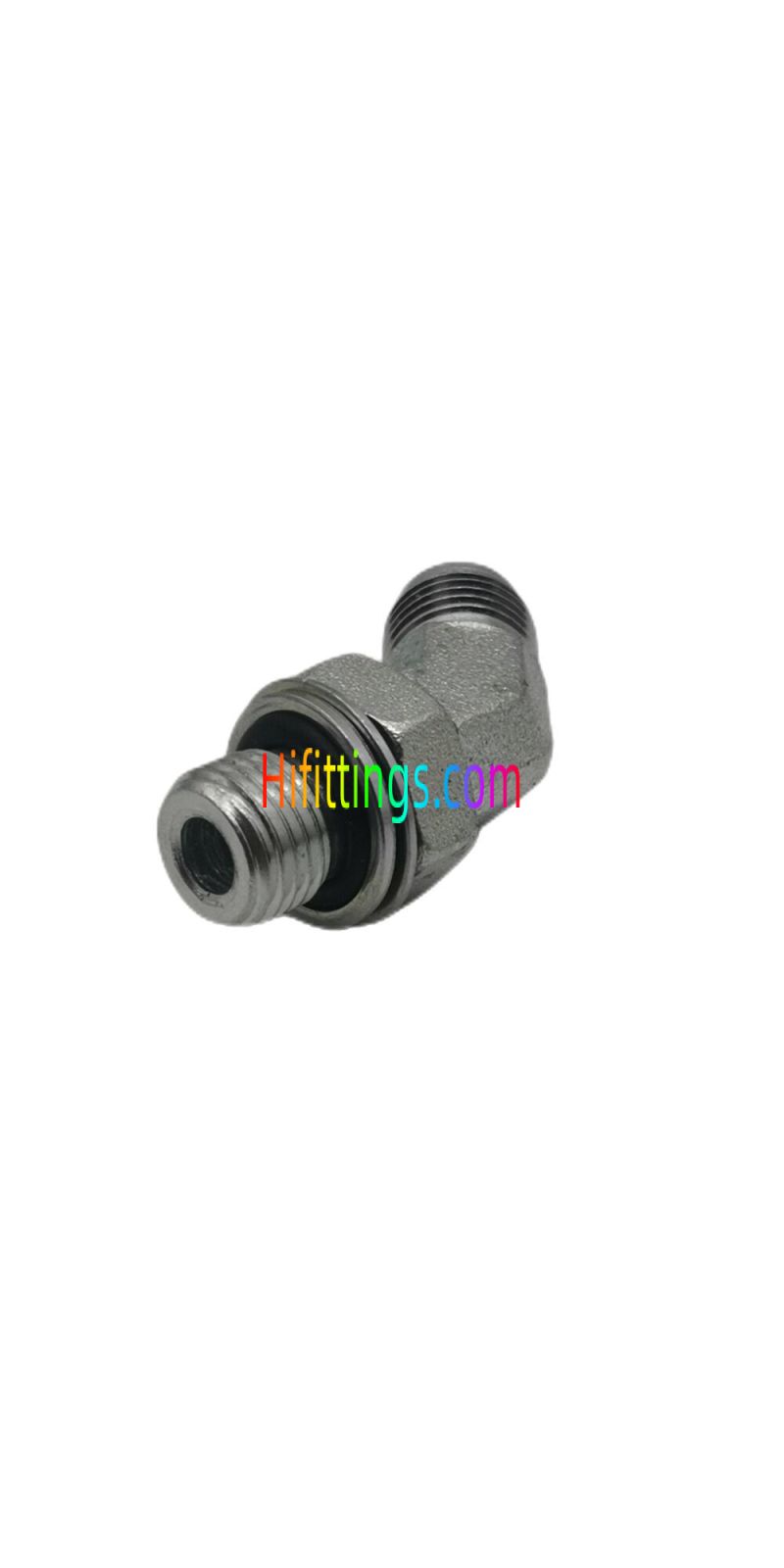

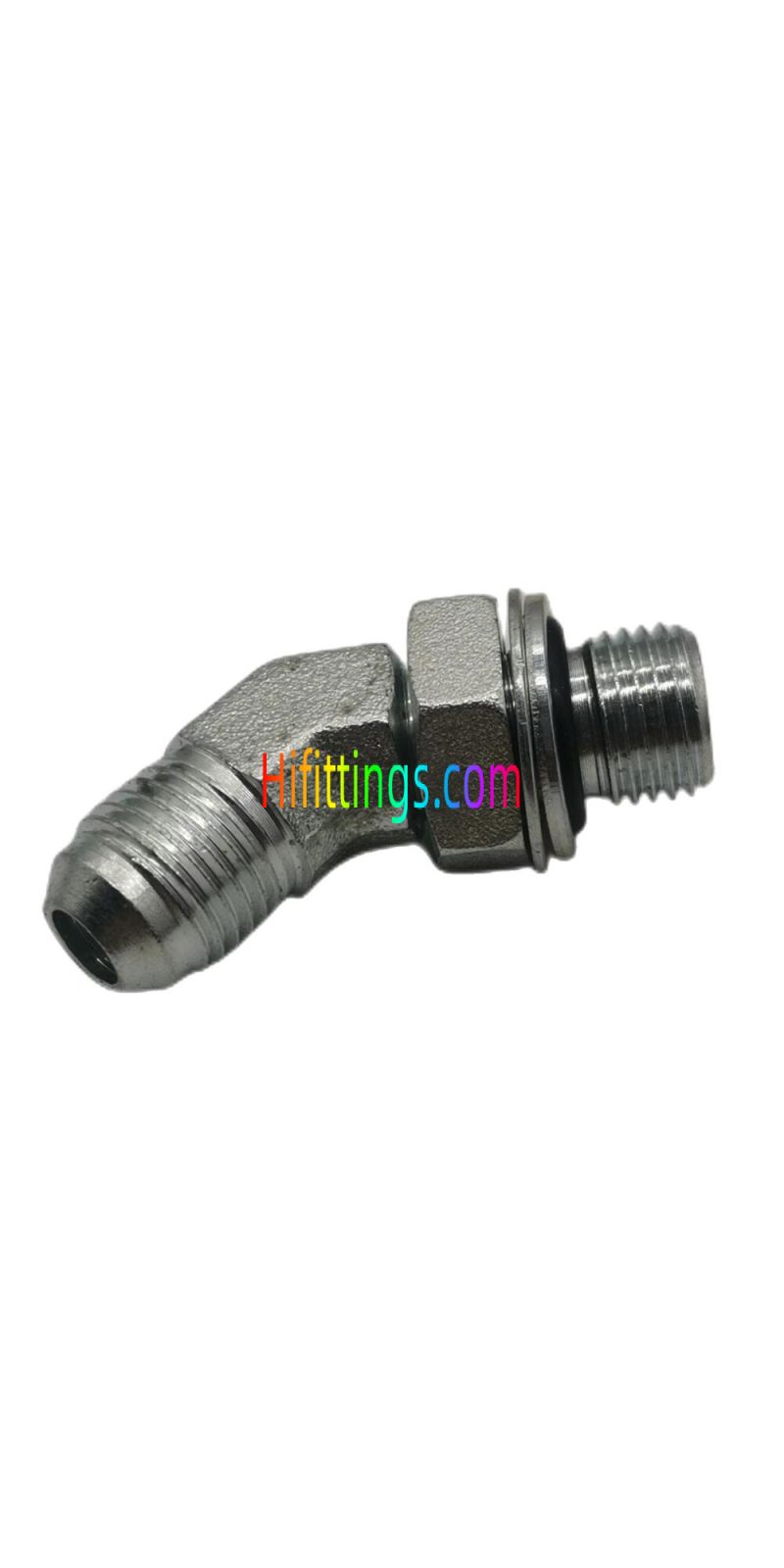

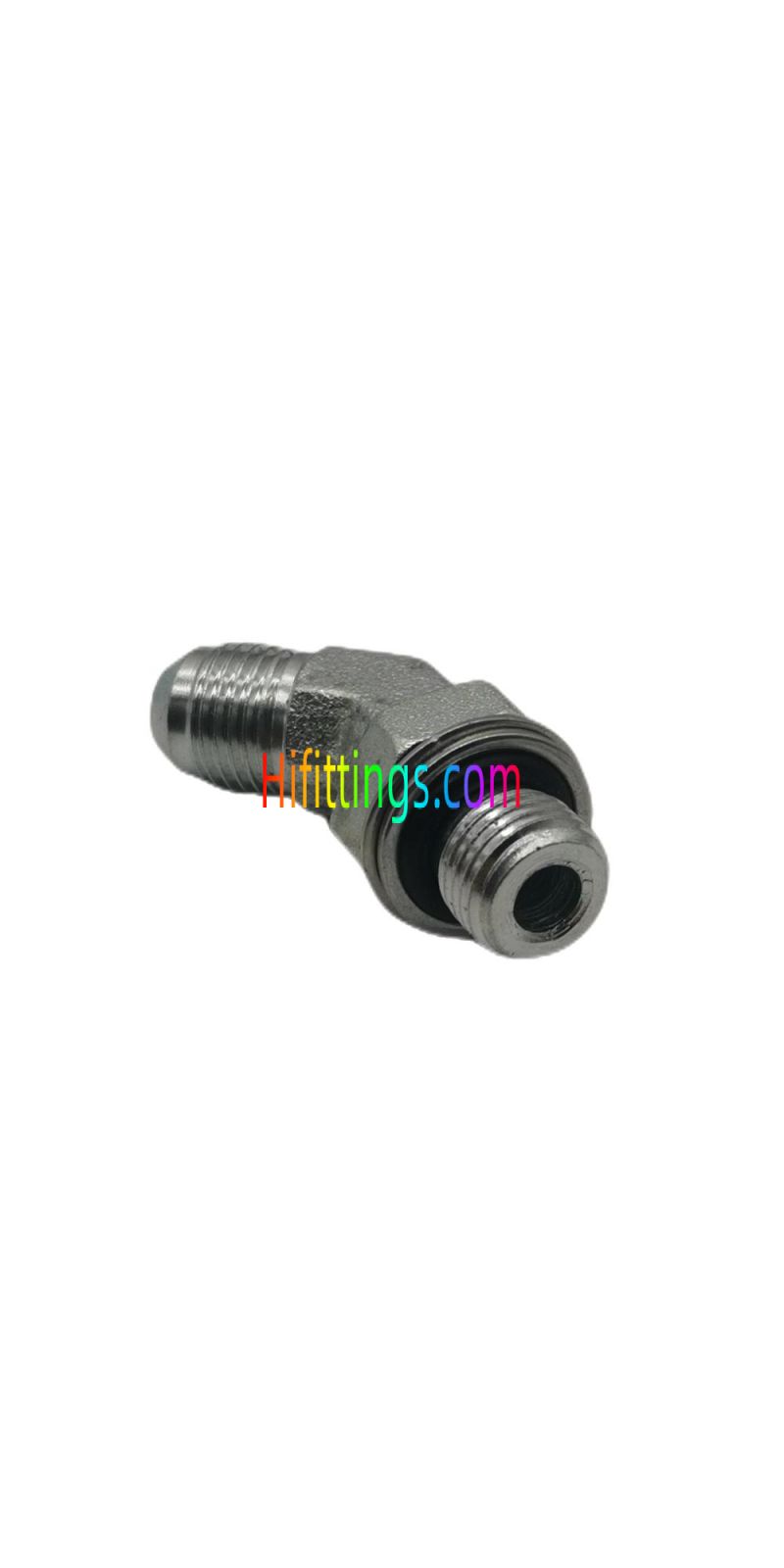

45 Degree Elbow BSP Male O-Ring / JIC Male 74 Degree Cone Flared Hydraulic Adapter Tube Fittings 1JG4-OG
|
Part NO. |
E |
F |
F End |
A |
B |
S1 |
S2 |
Working Pressure bar |
|
1JG4-04OG |
7/16"X20 |
G1/4"X19 |
111 |
21 |
28 |
14 |
19 |
PN345 |
|
1JG4-05-04OG |
1/2"X20 |
G1/4"X19 |
111 |
21 |
28 |
14 |
19 |
PN345 |
|
1JG4-06-04OG |
9/16"X18 |
G1/4"X19 |
111 |
22 |
28 |
14 |
19 |
PN345 |
|
1JG4-06OG |
9/16"X18 |
G3/8"X19 |
113 |
23 |
32 |
19 |
22 |
PN345 |
|
1JG4-08-06OG |
3/4"X16 |
G3/8"X19 |
113 |
25.8 |
32 |
19 |
22 |
PN310 |
|
1JG4-08OG |
3/4"X16 |
G1/2"X14 |
115 |
27.5 |
36 |
22 |
27 |
PN310 |
|
1JG4-10-08OG |
7/8"X14 |
G1/2"X14 |
115 |
29.5 |
38 |
22 |
27 |
PN240 |
|
1JG4-10OG |
7/8"X14 |
G5/8"X14 |
910 |
29.5 |
38 |
22 |
30 |
PN240 |
|
1JG4-12-10OG |
1.1/16"X12 |
G5/8"X14 |
910 |
34 |
38.5 |
27 |
30 |
PN240 |
|
1JG4-12-16OG |
1.1/16"X12 |
G1"X11 |
217 |
37.5 |
44 |
33 |
41 |
PN240 |
|
1JG4-12OG |
1.1/16"X12 |
G3/4"X14 |
119 |
34 |
42 |
27 |
32 |
PN240 |
|
1JG4-16-12OG |
1.5/16"X12 |
G3/4"X14 |
119 |
38 |
44 |
33 |
32 |
PN210 |
|
1JG4-16OG |
1.5/16"X12 |
G1"X11 |
217 |
38 |
44 |
33 |
41 |
PN210 |
|
1JG4-20OG |
1.5/8"X12 |
G1.1/4"X11 |
222 |
43 |
47.5 |
41 |
50 |
PN170 |
|
1JG4-24OG |
1.7/8"X12 |
G1.1/2"X11 |
224 |
49 |
51.5 |
48 |
55 |
PN140 |
|
Note：1Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube. 2. F end is connected with DIN 3852 port. 3.PN = Nominal Pressure |
||||||||
| Форма | Elbow |
|---|---|
| Тип крепления | Cone Flared |
| Тип резьбы | Male |
| Connection Type | BSP, JIC |
