Part NO. |
Thread E |
DN |
Dash |
A |
C |
H |
S2 |
|
20241-14-04 |
M14X1.5 |
6 |
4 |
40.5 |
8.5 |
18.5 |
19 |
|
20241-14-05 |
M14X1.5 |
8 |
5 |
42.7 |
8.5 |
19.3 |
19 |
|
20241-16-05 |
M16X1.5 |
8 |
5 |
44.4 |
8.5 |
20 |
22 |
|
20241-18-06 |
M18X1.5 |
10 |
6 |
45.7 |
8 |
21.4 |
24 |
|
20241-22-08 |
M22X1.5 |
12 |
8 |
58.9 |
10 |
24 |
27 |
|
20241-27-10T |
M27X1.5 |
16 |
10 |
68.6 |
10 |
24.3 |
32 |
|
20241-30-12 |
M30X1.5 |
20 |
12 |
78.1 |
11 |
30 |
36 |
|
20241-36-12T |
M36X2 |
20 |
12 |
75 |
13 |
27.5 |
41 |
|
20241-36-14T |
M36X2 |
22 |
14 |
77.3 |
13 |
27 |
41 |
|
20241-36-16 |
M36X2 |
25 |
16 |
85.7 |
13 |
31.5 |
41 |
|
20241-39-16T |
M39X2 |
25 |
16 |
83.9 |
13 |
29.7 |
46 |
|
20241-42-20 |
M42X2 |
32 |
20 |
97.3 |
15 |
36.6 |
50 |
|
20241-45-20T |
M45X2 |
32 |
20 |
94.5 |
15 |
33.8 |
55 |
|
20241-52-20T |
M52X2 |
32 |
20 |
94.5 |
17 |
33.8 |
60 |
|
20241-52-24T |
M52X2 |
40 |
24 |
108.5 |
17 |
37.7 |
60 |
|
20241-60-28T |
M60X2 |
45 |
28 |
118.7 |
20 |
43.6 |
70 |
|
20241-64-32T |
M64X2 |
50 |
32 |
127.8 |
23 |
45.6 |
75 |
|
Note: I.For use with braided hoses. 2.lf use with spiral hoses, hose fitting series number is 20242-xx-xx. |
|||||||

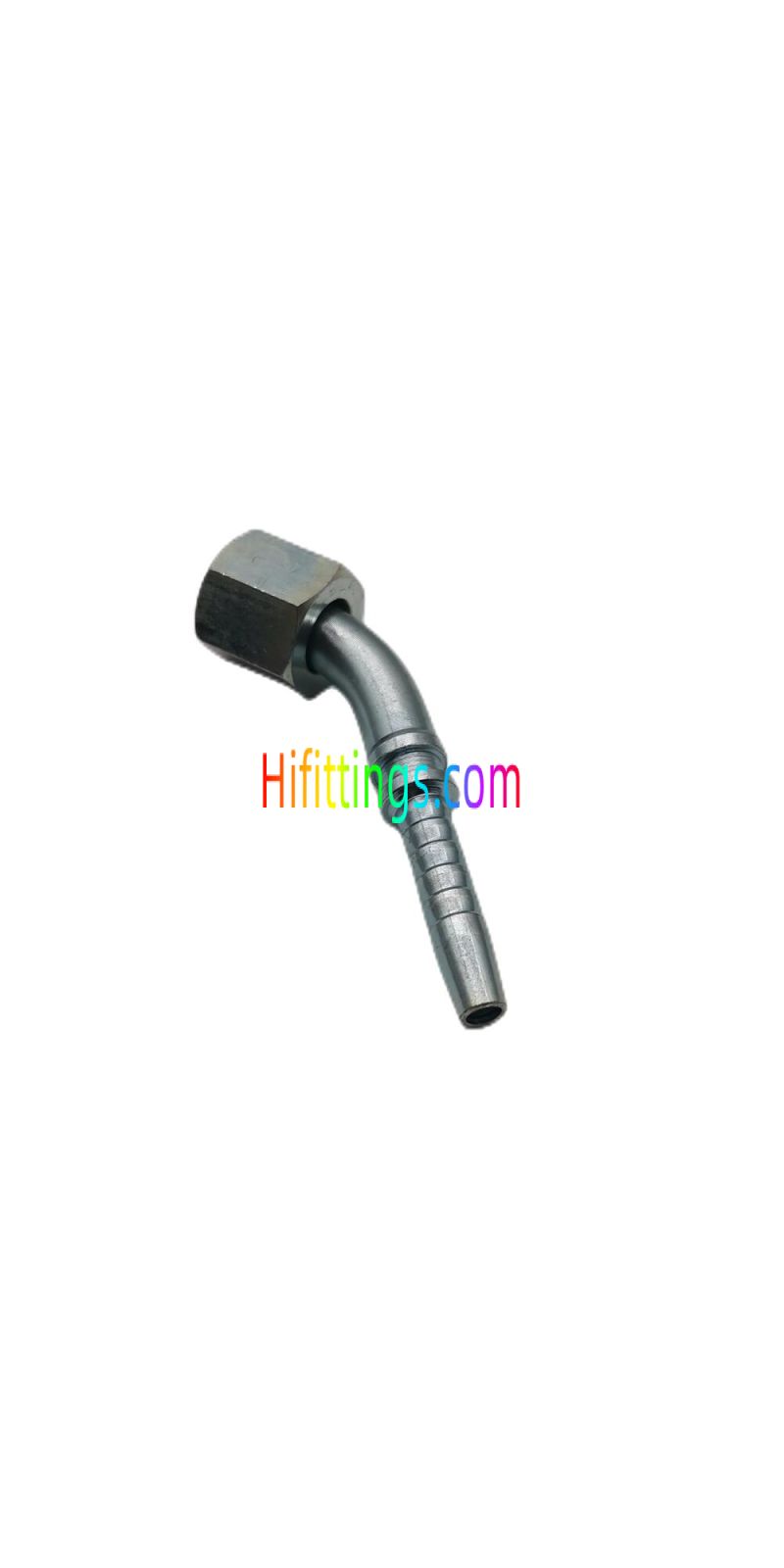

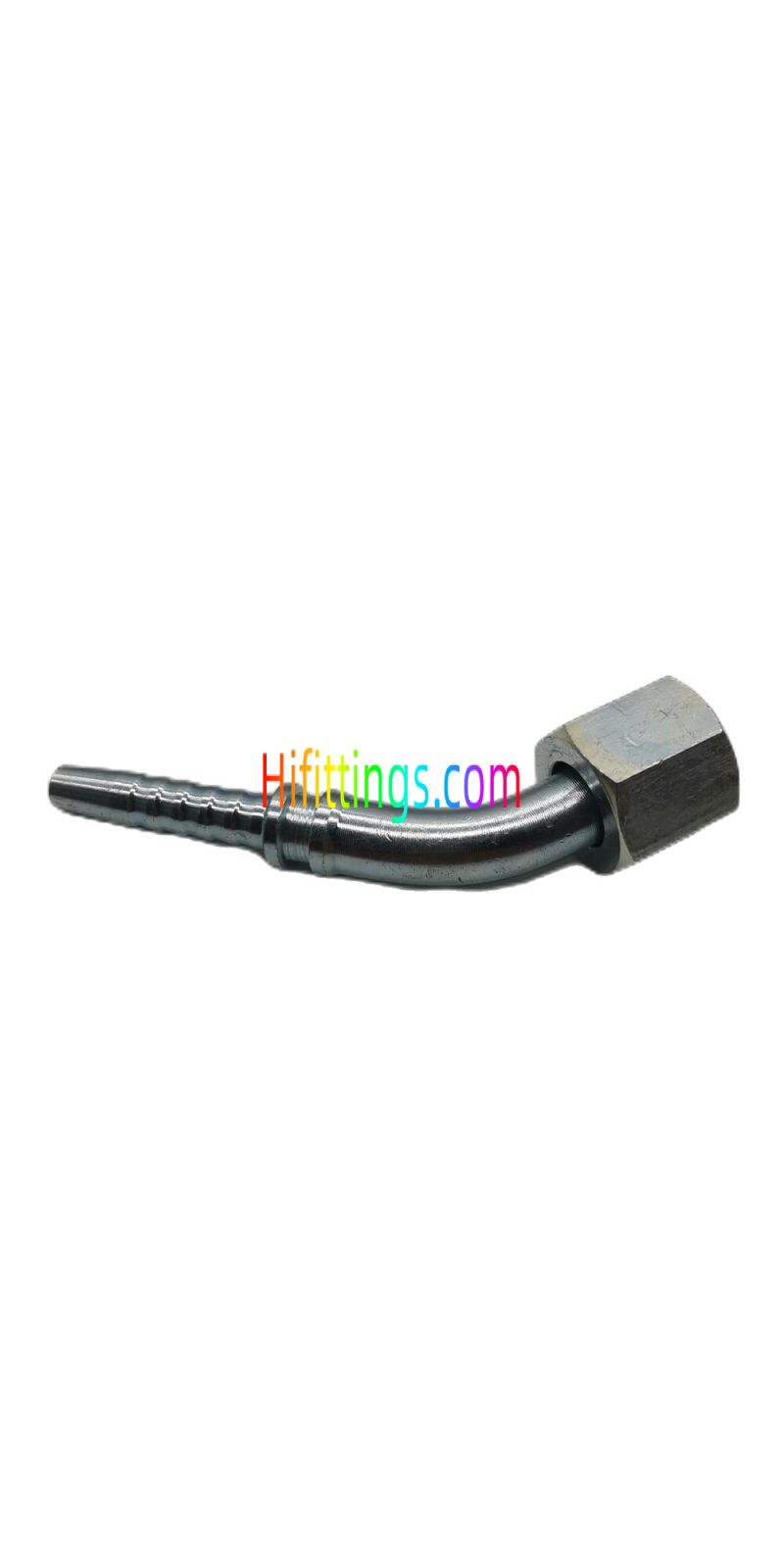

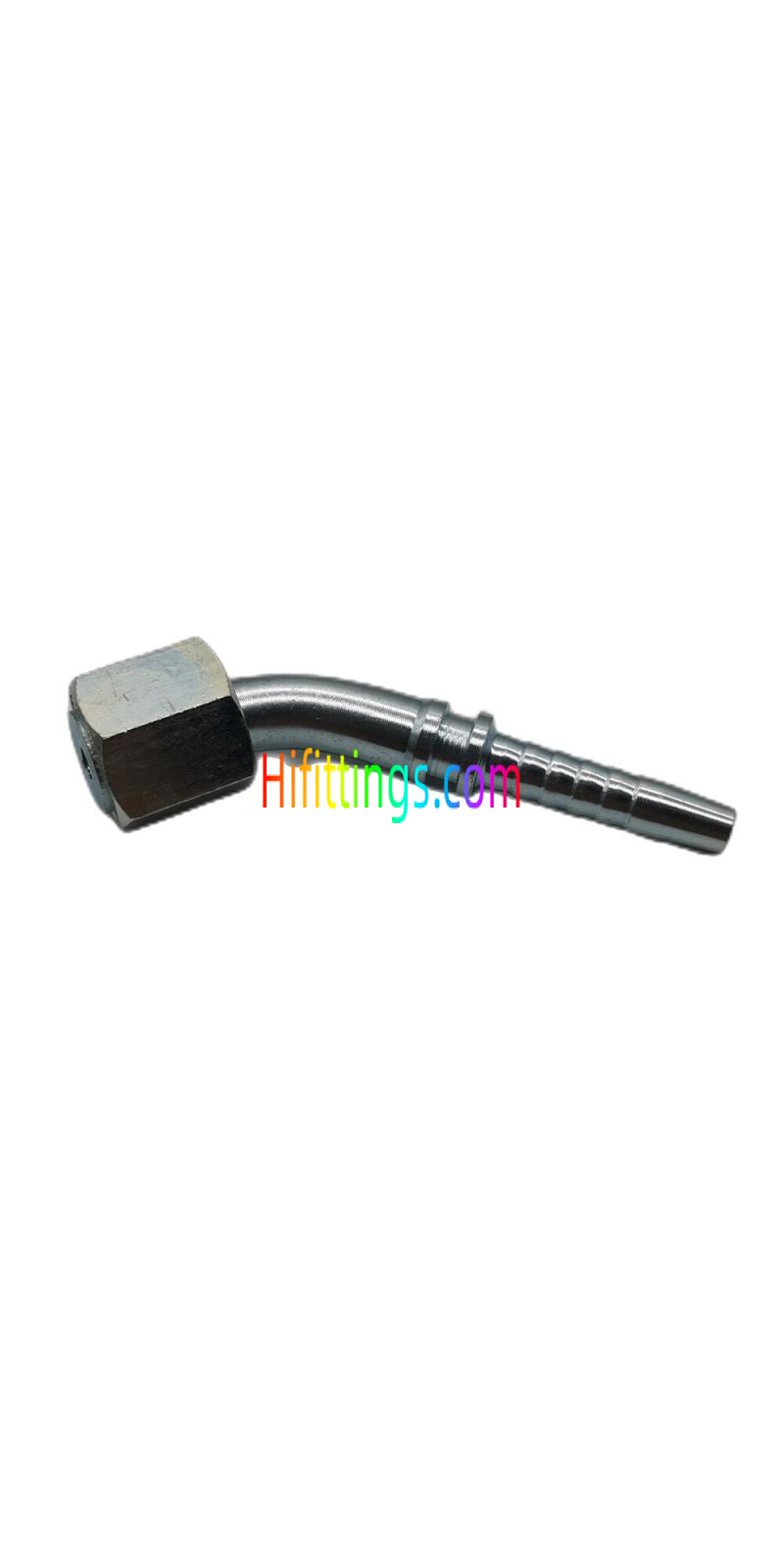

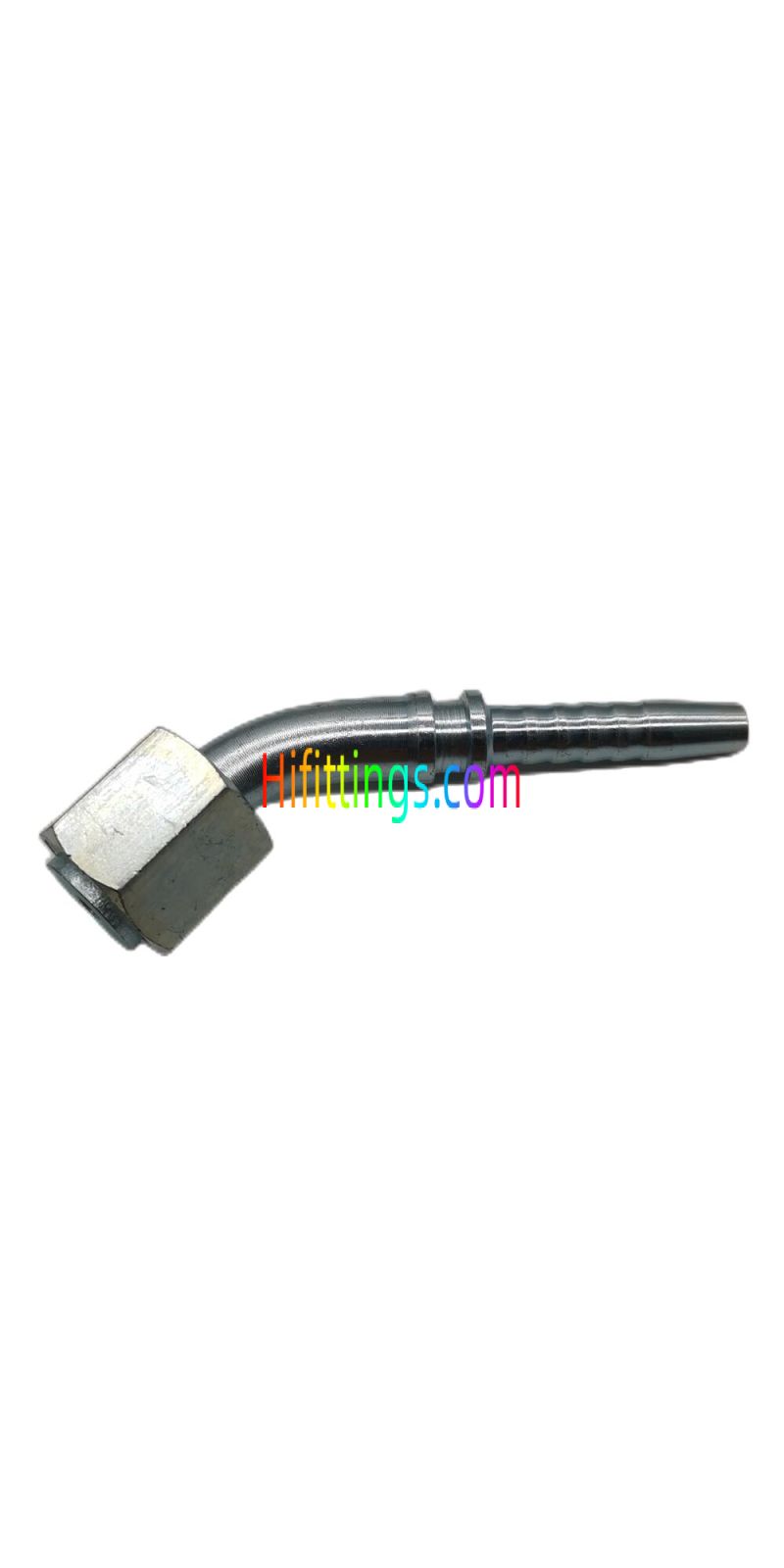

| Форма | Elbow |
|---|---|
| Тип крепления | Face Seal |
| Тип резьбы | Female |
| Connection Type | Metric |
