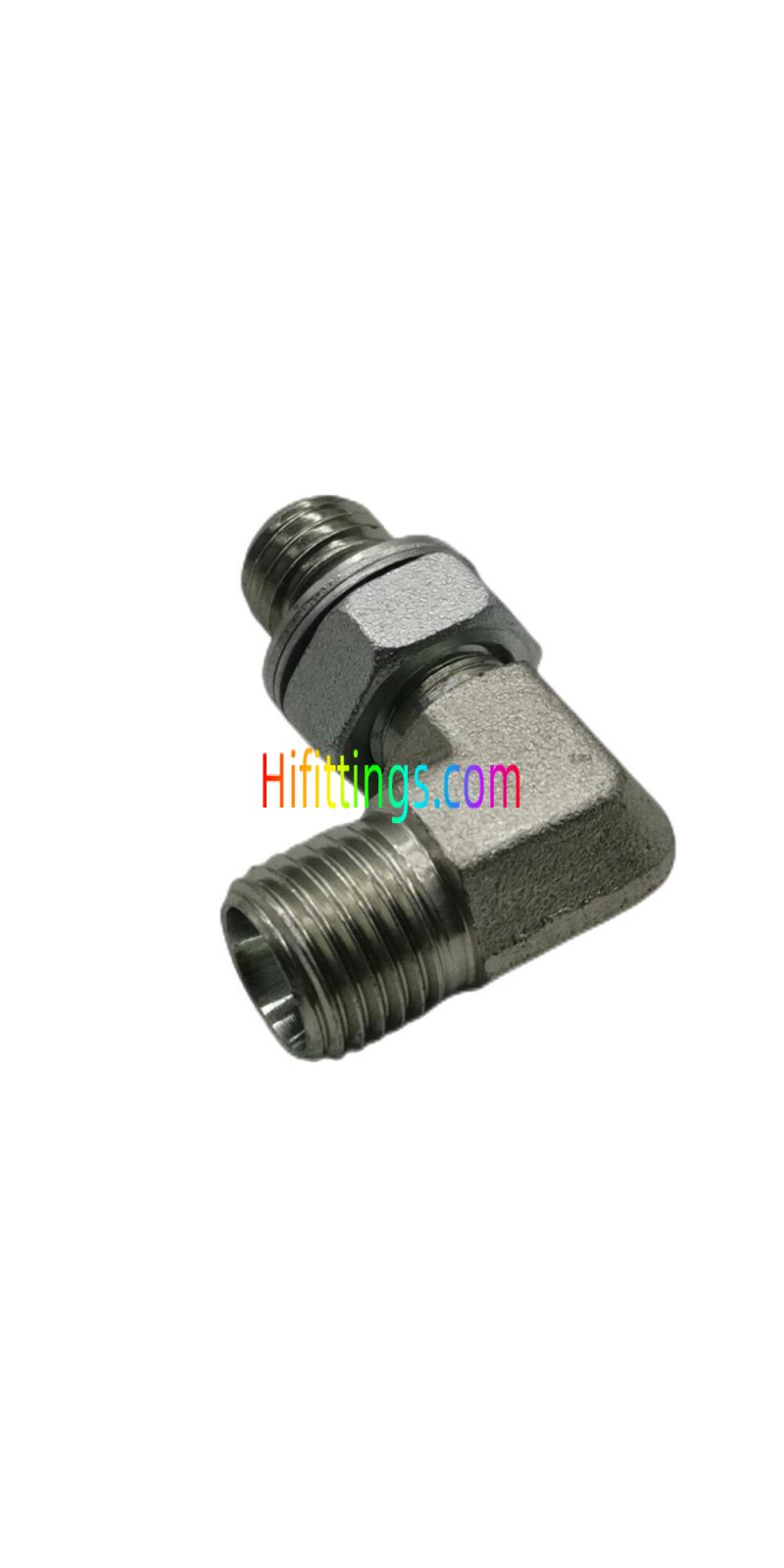

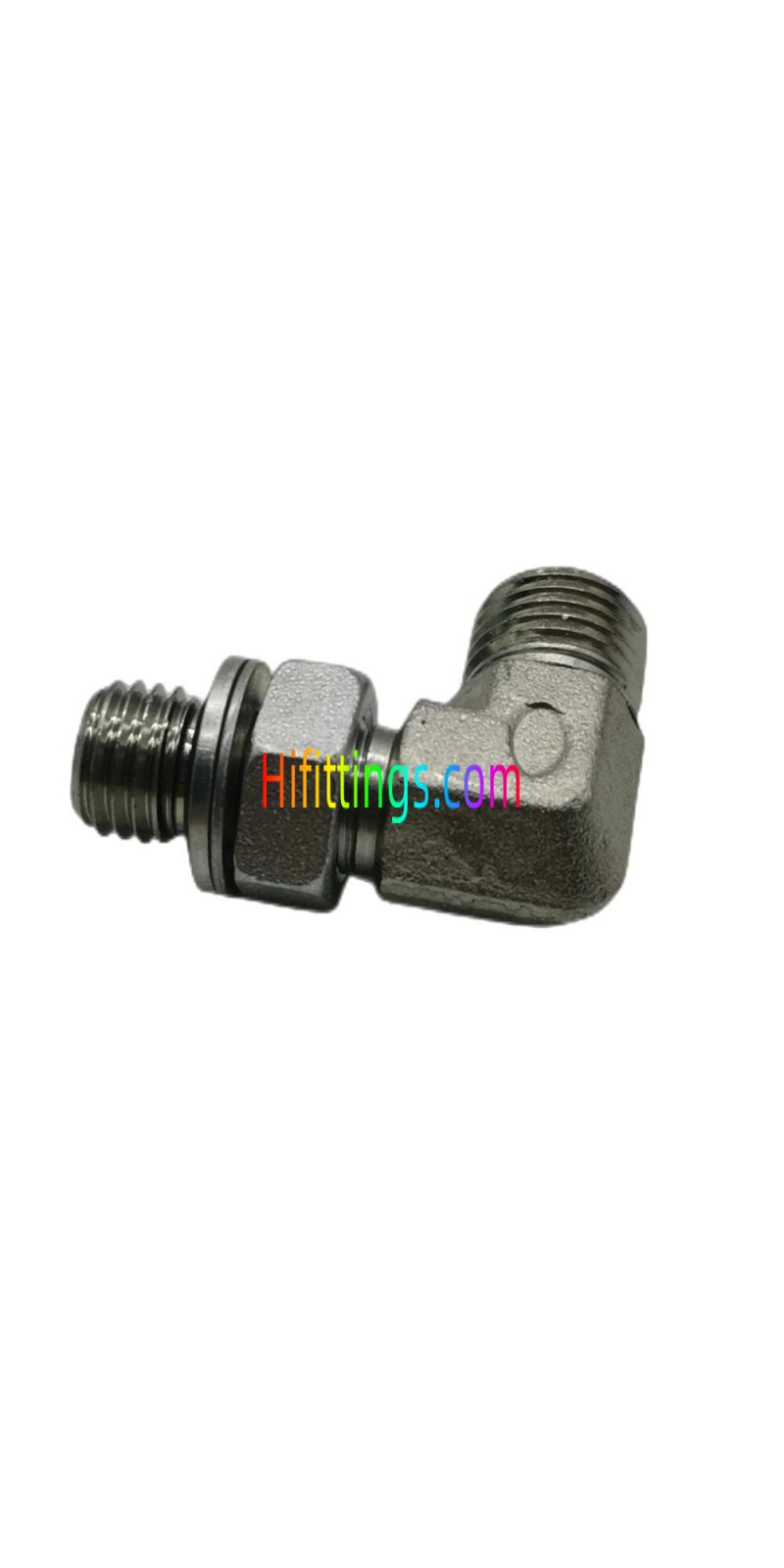

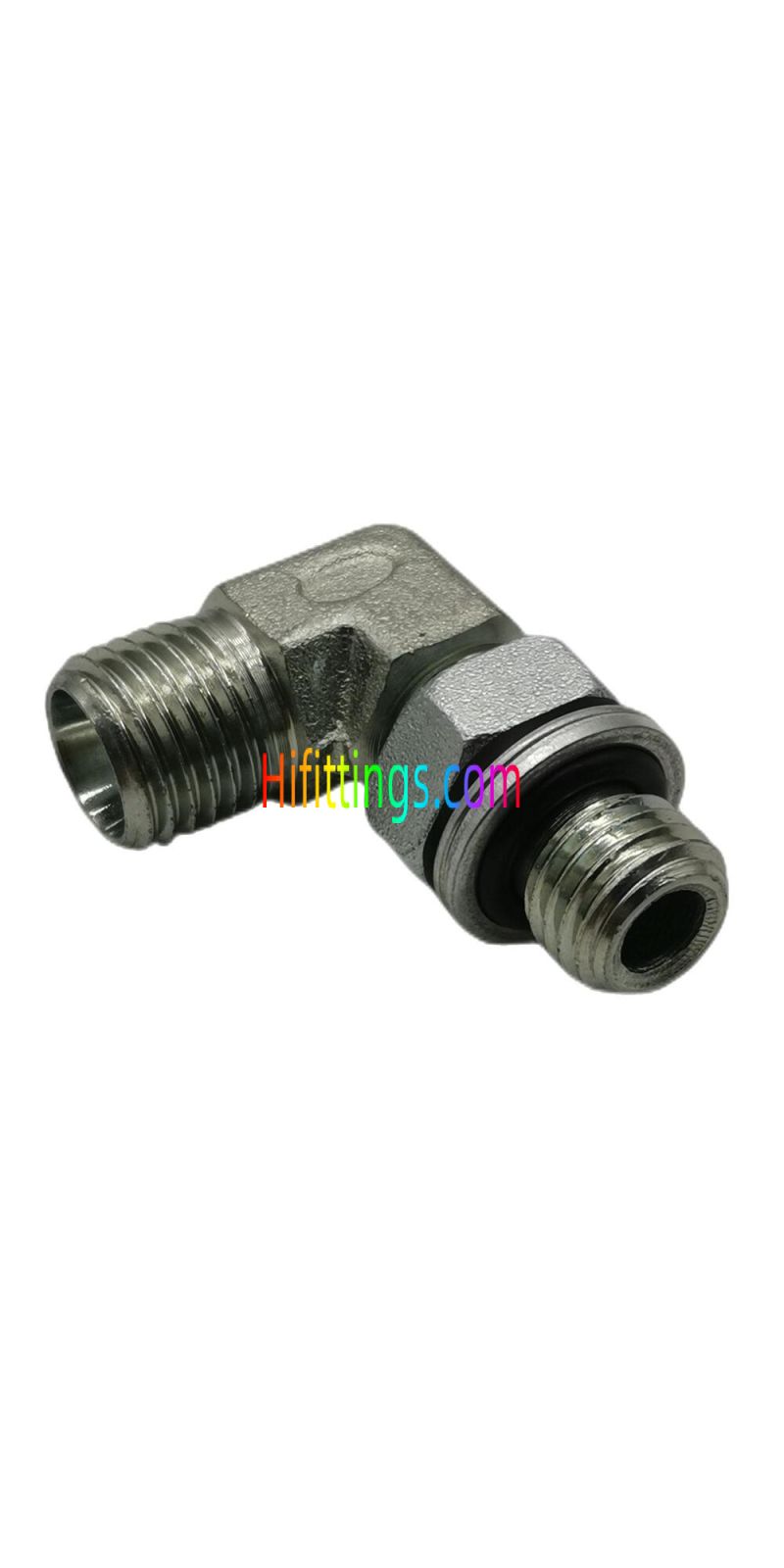

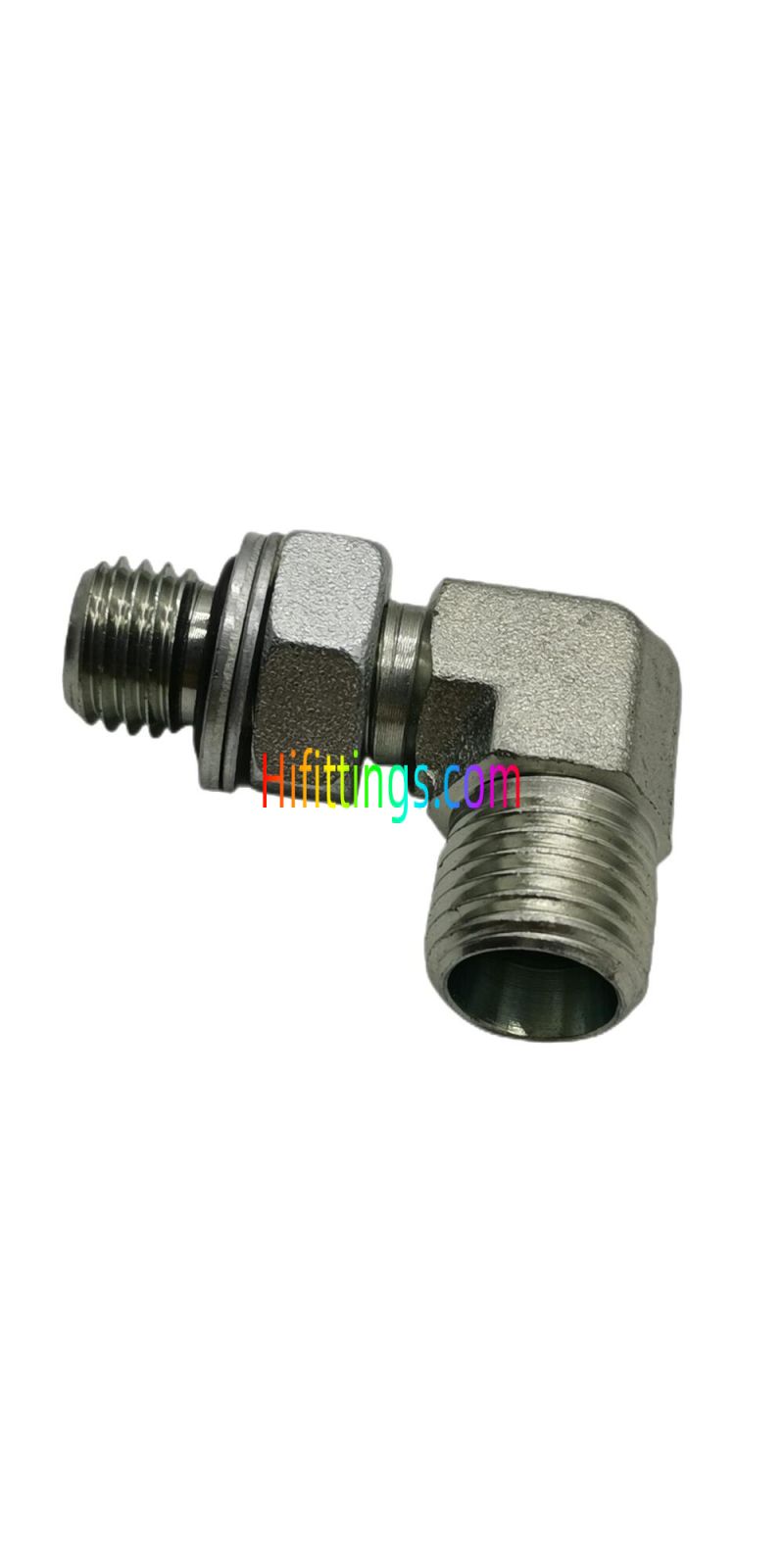

90° Elbow Metric Male Adjustable Stud End ISO 6149 Bite Type Tube Fitting 1CH9-OG/1DH9-OG
|
Part NO. |
E |
F |
D1 |
O-Ring |
11 |
L1 |
L2 |
S1 |
S2 |
S3 |
Working Pressure bar |
|
1CH9-12-10OG |
M12X1.5 |
M10X1 |
6 |
8.1X1.6 |
13 |
28 |
26.5 |
11 |
14 |
14 |
PN315 |
|
1CH9-14-12OG |
M14X1.5 |
M12X1.5 |
8 |
9.3X2.4 |
15.5 |
30.5 |
32 |
14 |
17 |
17 |
PN315 |
|
1CH9-16-14OG |
M16X1.5 |
M14X1.5 |
10 |
11.3X2.4 |
17.5 |
32.5 |
34 |
16 |
19 |
19 |
PN315 |
|
1CH9-18-16OG |
M18X1.5 |
M16X1.5 |
12 |
13.3X2.4 |
19 |
34 |
36 |
19 |
22 |
22 |
PN315 |
|
1CH9-22-18OG |
M22X1.5 |
M18X1.5 |
15 |
15.3X2.4 |
22 |
37 |
39.5 |
22 |
27 |
24 |
PN315 |
|
1CH9-26-22OG |
M26X1.5 |
M22X1.5 |
18 |
19.3X2.4 |
25.5 |
42 |
43.5 |
27 |
32 |
27 |
PN315 |
|
1CH9-30-27OG |
M30X2 |
M27X2 |
22 |
23.5X3.0 |
29.3 |
45.8 |
50 |
30 |
36 |
32 |
PN160 |
|
1CH9-36-33OG |
M36X2 |
M33X2 |
28 |
29.5X30 |
33.3 |
49.8 |
54 |
36 |
41 |
41 |
PN160 |
|
1DH9-14-12OG |
M14X1.5 |
M12X1.5 |
6 |
9.3X2.4 |
17.5 |
32.5 |
32 |
14 |
17 |
17 |
PN630 |
|
1DH9-16-14OG |
M16X1.5 |
M14X1.5 |
8 |
11.3X2.4 |
18.7 |
33.7 |
34 |
16 |
19 |
19 |
PN630 |
|
1DH9-18-16OG |
M18X1.5 |
M16X1.5 |
10 |
13.3X2.4 |
19.5 |
36 |
36 |
19 |
22 |
22 |
PN630 |
|
1DH9-20-18OG |
M20X1.5 |
M18X1.5 |
12 |
15.3X2.4 |
19.5 |
36 |
37 |
19 |
24 |
24 |
PN630 |
|
1DH9-22-20OG |
M22X1.5 |
M20X1.5 |
14 |
17.3X2.4 |
23 |
41 |
40 |
22 |
27 |
27 |
PN630 |
|
1DH9-24-22OG |
M24X1.5 |
M22X1.5 |
16 |
19.3X2.4 |
24 |
42 |
37.5 |
24 |
30 |
27 |
PN630 |
|
1DH9-30-27OG |
M30X2 |
M27X2 |
20 |
23.5X3.0 |
28.3 |
49.8 |
50 |
30 |
36 |
32 |
PN400 |
|
1DH9-36-33OG |
M36X2 |
M33X2 |
25 |
29.5X3.0 |
32.8 |
56.8 |
54 |
36 |
46 |
41 |
PN400 |
|
1DH9-42OG |
M42X2 |
M42X2 |
30 |
38.5X3.0 |
36.2 |
62.7 |
57.2 |
41 |
50 |
50 |
PN400 |
|

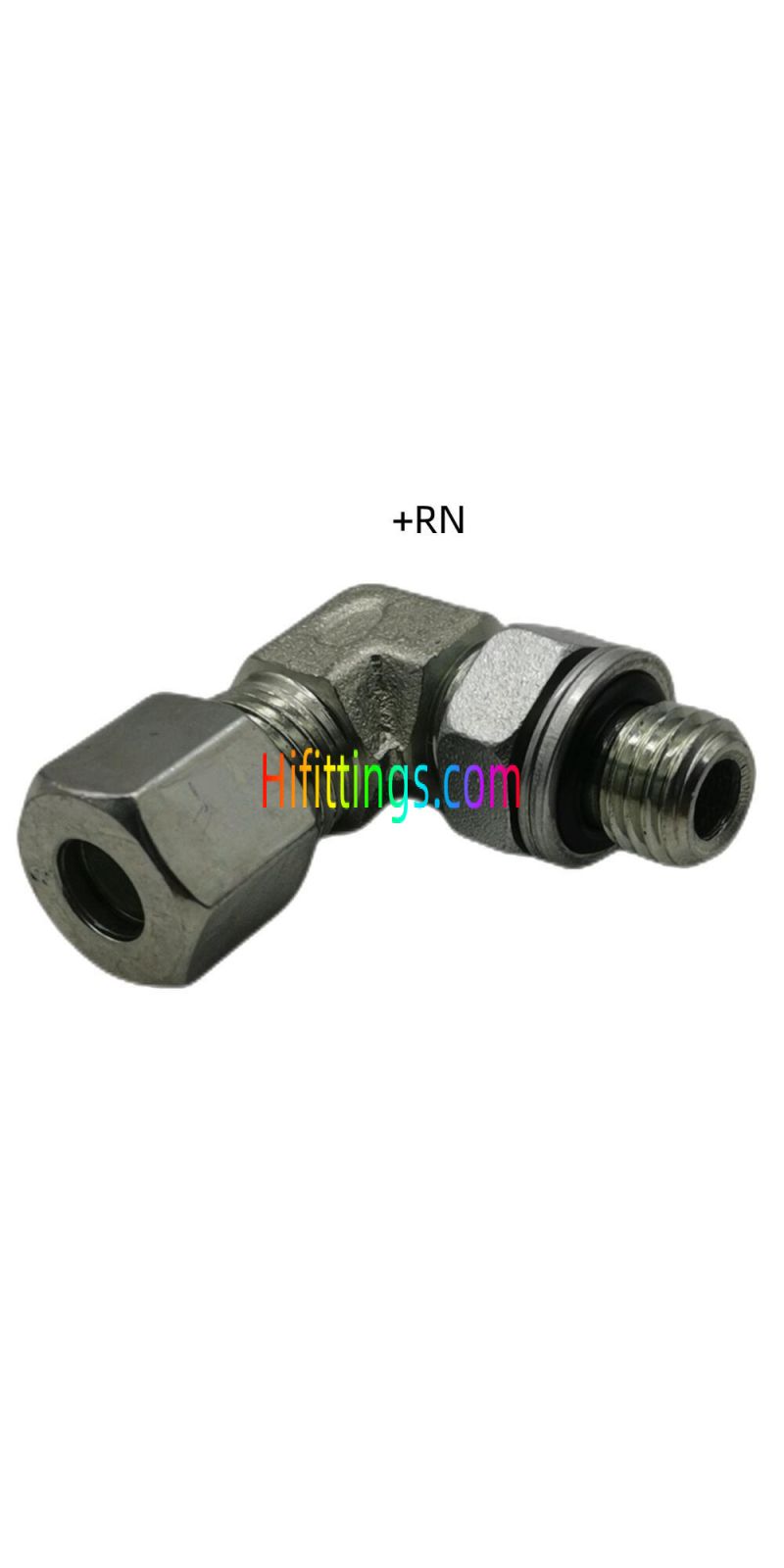

Note: 1. In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO. , for example 1CH9-30-27OG/RN. 2. PN = Nominal Pressure |
|||||||||||
| Форма | Elbow |
|---|---|
| Тип резьбы | Male |
| Connection Type | Metric |
| Тип крепления | Bite Type |
