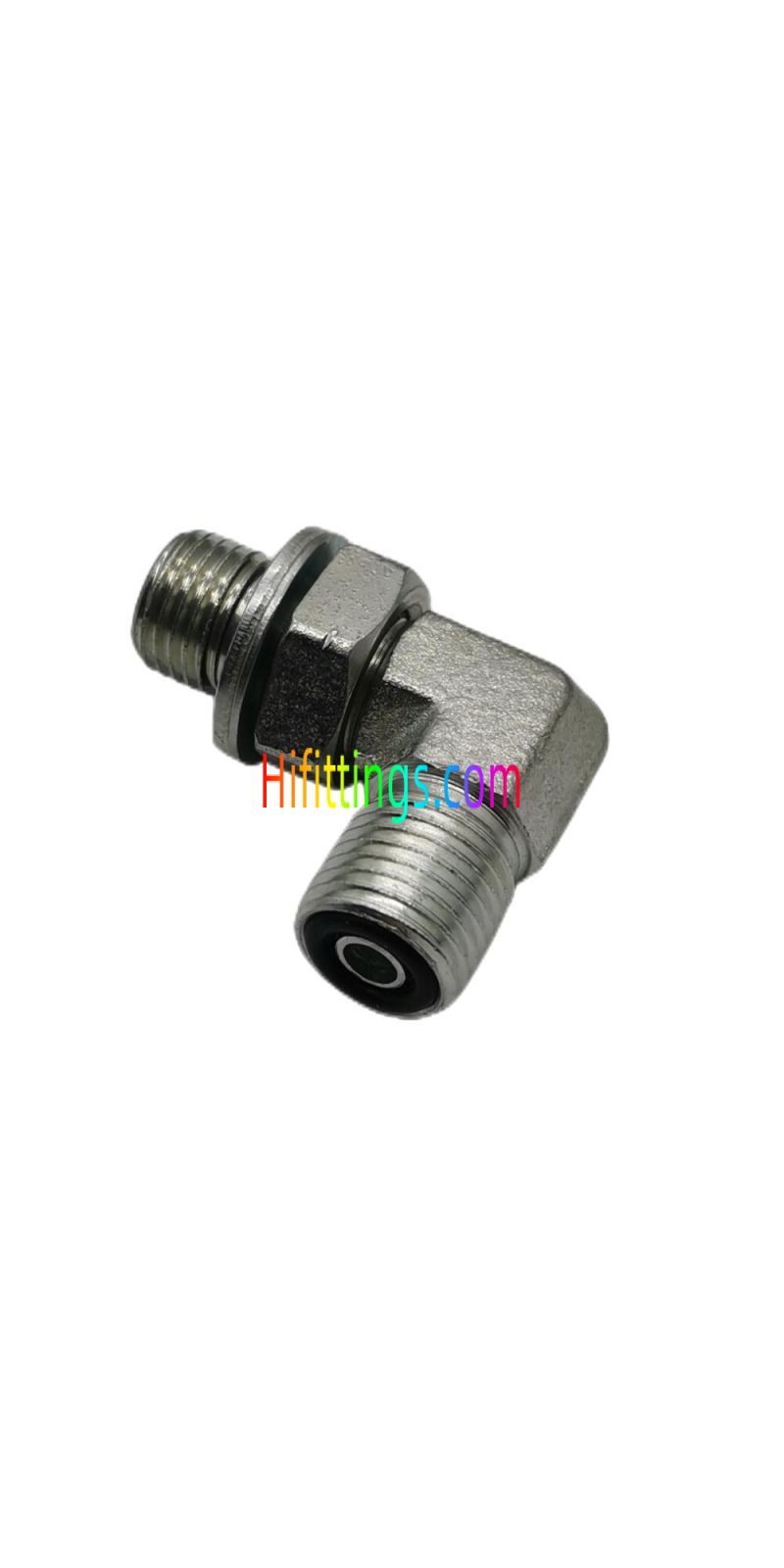

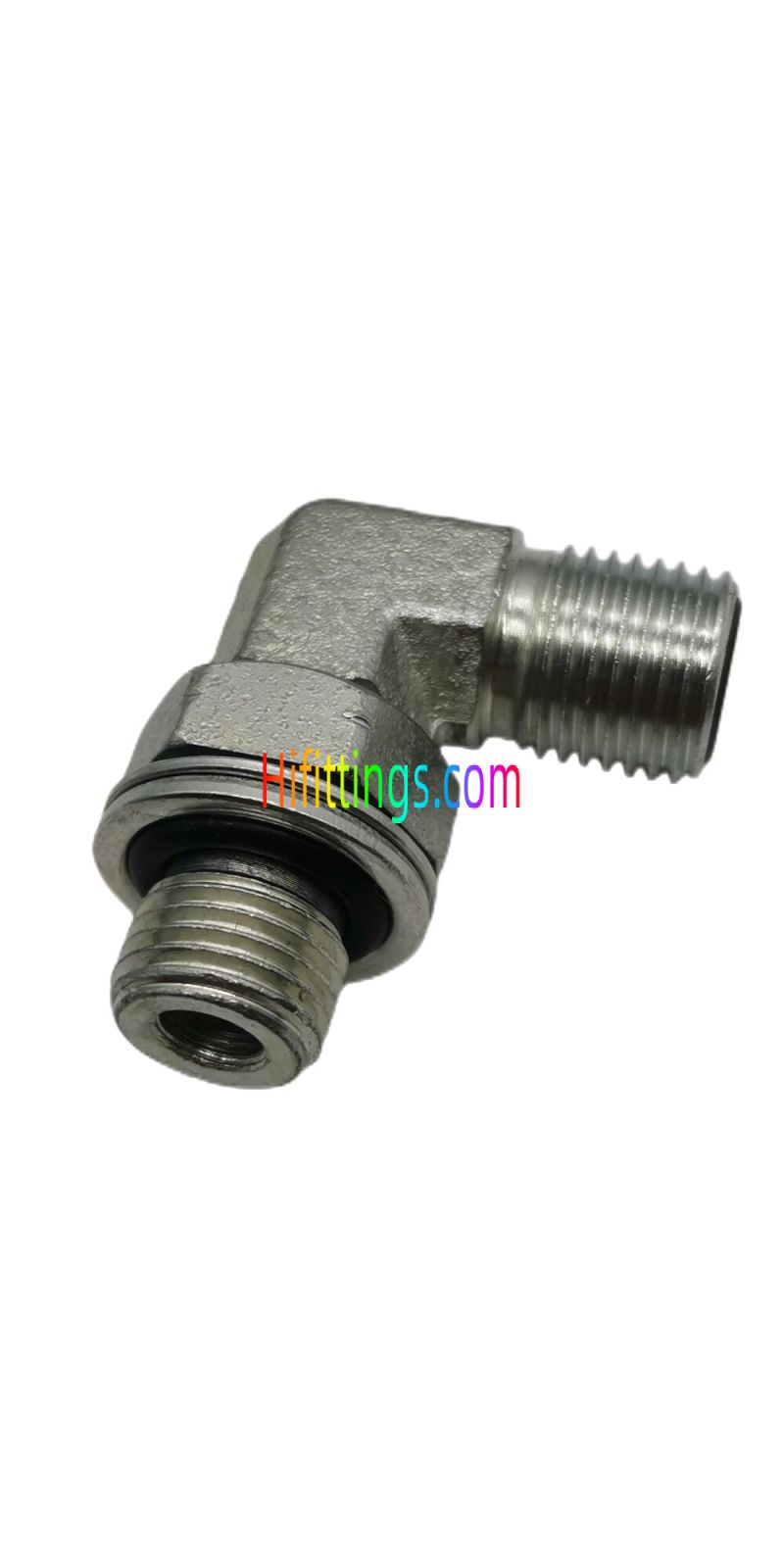

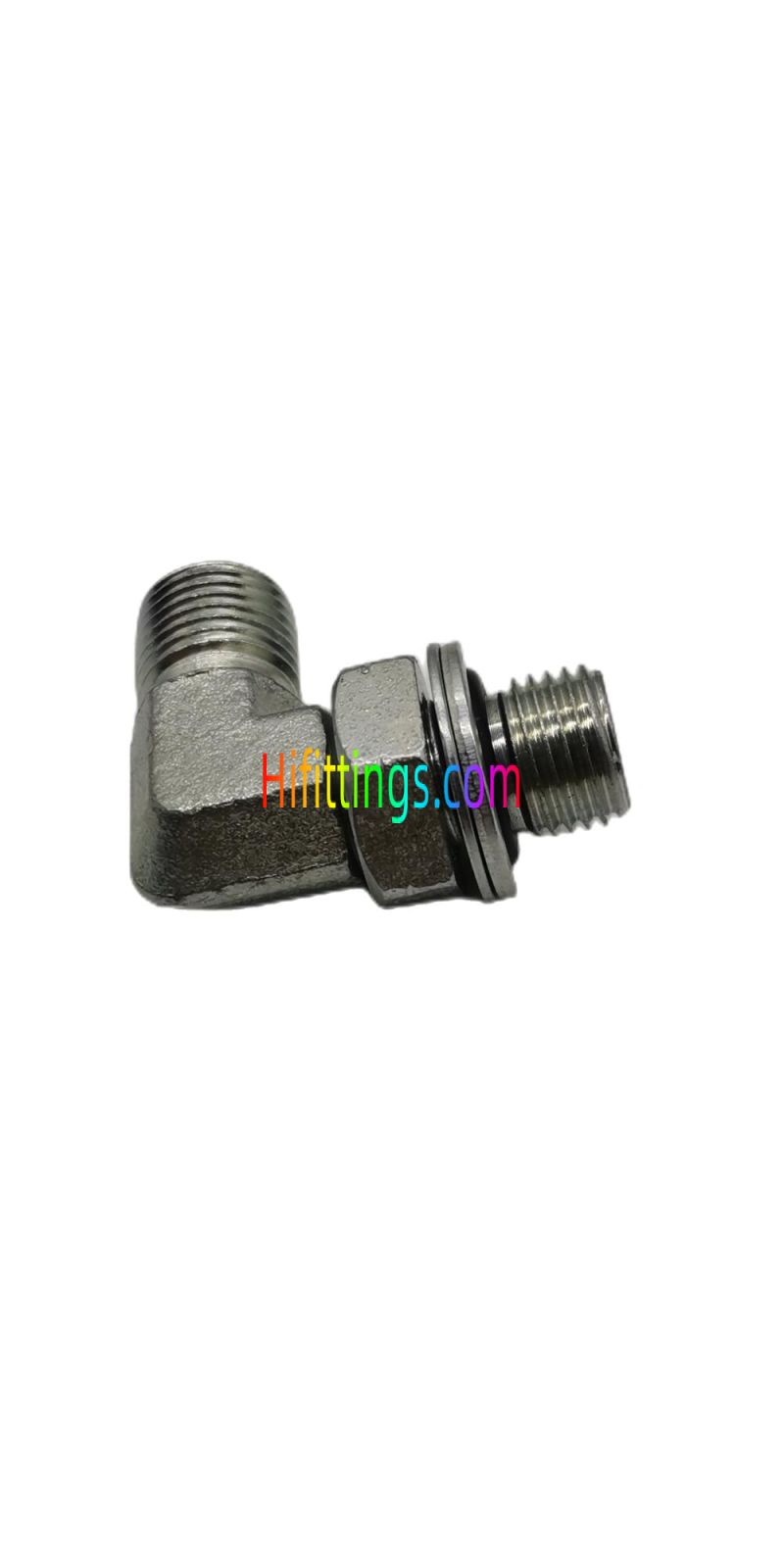

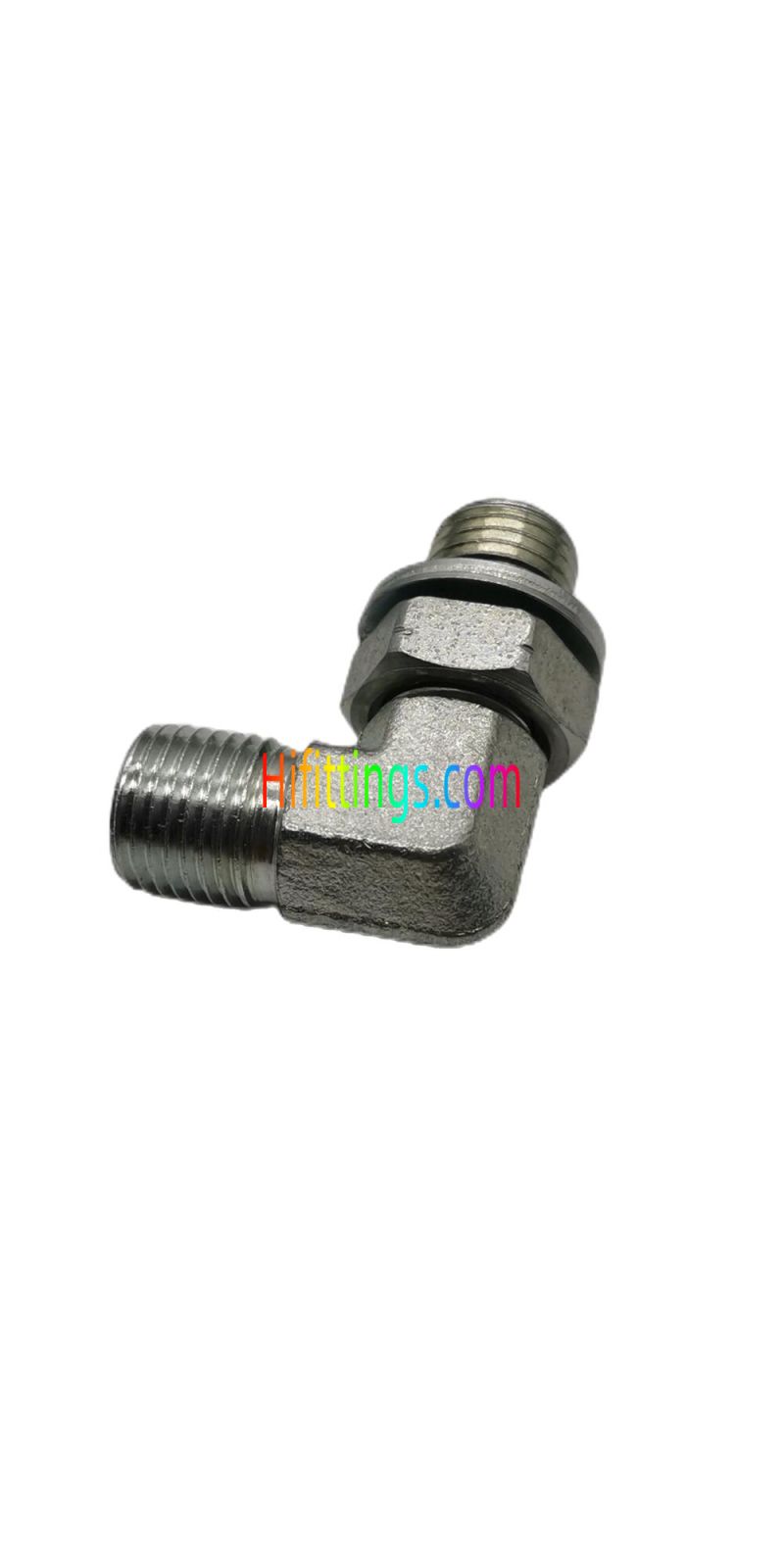

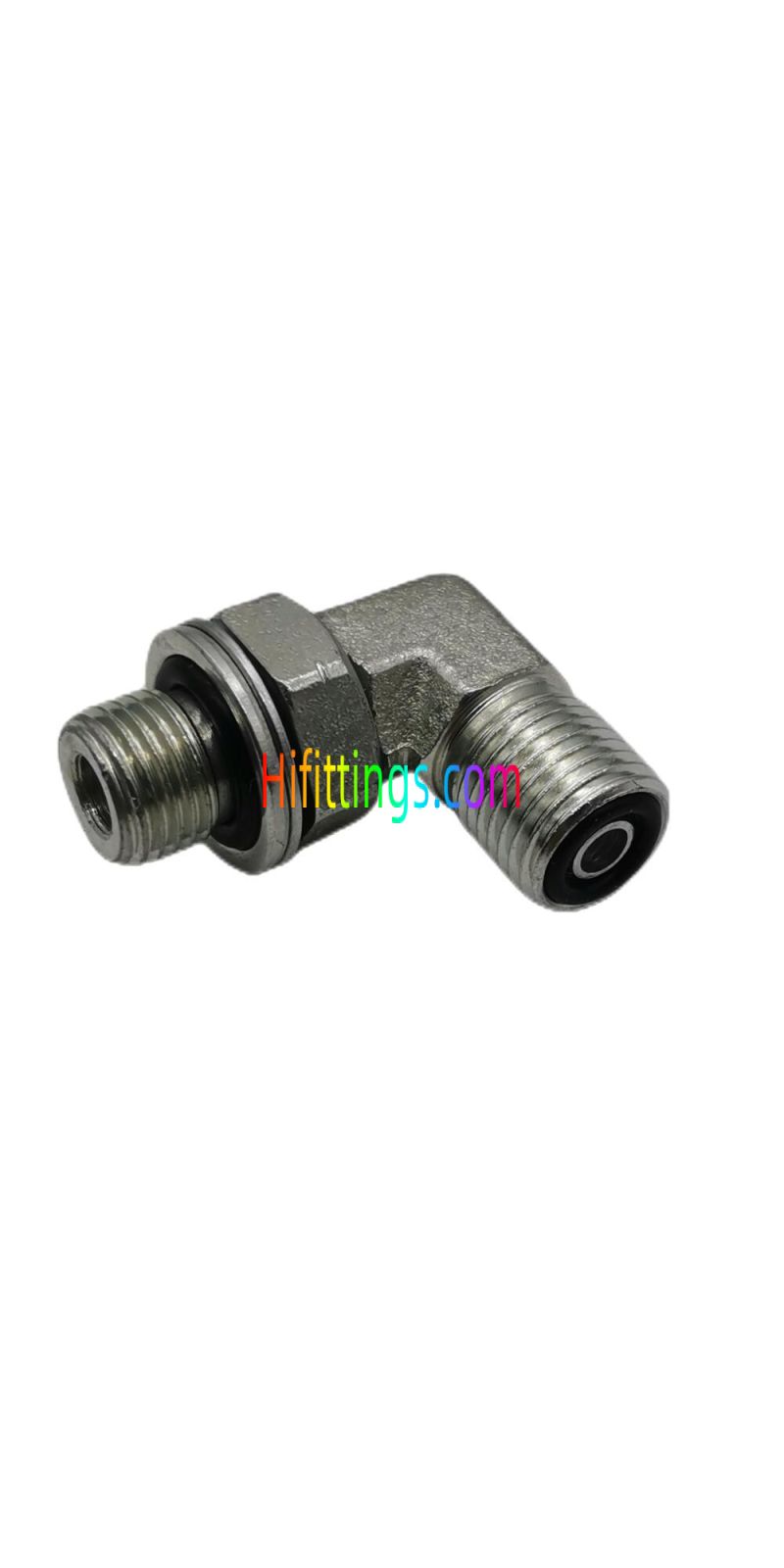

90 Degree Elbow ORFS Male O-Ring / BSP Male O-Ring Hydraulic Adapter Pipe Fittings 1FG9-OG
|
Part NO. |
E |
F |
E End |
F End |
A |
B |
S1 |
S2 |
Working Pressure bar |
|
1FG9-04-02OG |
9/16"X18 |
G1/8"X28 |
11 |
11 |
23 |
29 |
14 |
14 |
PN400 |
|
1FG9-04OG |
9/16"X18 |
G1/4"X19 |
11 |
111 |
23 |
31.3 |
14 |
19 |
PN400 |
|
1FG9-04-06OG |
9/16"X18 |
G3/8"X19 |
11 |
113 |
24 |
35.8 |
16 |
22 |
PN315 |
|
1FG9-06-04OG |
11/16"X16 |
G1/4"X19 |
12 |
111 |
27 |
33.5 |
19 |
19 |
PN400 |
|
1FG9-06OG |
11/16"X16 |
G3/8"X19 |
12 |
113 |
27 |
36.8 |
19 |
22 |
PN315 |
|
1FG9-06-08OG |
11/16"X16 |
G1/2"X14 |
12 |
115 |
29 |
43.2 |
22 |
27 |
PN315 |
|
1FG9-08-06OG |
13/16"X16 |
G3/8"X19 |
14 |
113 |
31 |
39.5 |
22 |
22 |
PN315 |
|
1FG9-08OG |
13/16"X16 |
G1/2"X14 |
14 |
115 |
31 |
43.2 |
22 |
27 |
PN315 |
|
1FG9-10-08OG |
1"X14 |
G1/2"X14 |
16 |
115 |
36.5 |
46.5 |
27 |
27 |
PN315 |
|
1FG9-10-12OG |
1"X14 |
G3/4"X14 |
16 |
119 |
36.5 |
49.3 |
27 |
32 |
PN200 |
|
1FG9-12-08OG |
1.3/16"X12 |
G1/2"X14 |
18 |
115 |
40.3 |
47.5 |
30 |
27 |
PN315 |
|
1FG9-12OG |
1.3/16"X12 |
G3/4"X14 |
18 |
119 |
40.3 |
52 |
30 |
32 |
PN200 |
|
1FG9-12-16OG |
1.3/16"X12 |
G1"X11 |
18 |
217 |
42.5 |
53 |
33 |
41 |
PN200 |
|
1FG9-16-12OG |
1.7/16"X12 |
G3/4"X14 |
21 |
119 |
44.5 |
56 |
36 |
32 |
PN200 |
|
1FG9-16OG |
1.7/16"X12 |
G1"X11 |
21 |
217 |
44.5 |
56 |
36 |
41 |
PN200 |
|
1FG9-20-16OG |
1.11/16"X12 |
G1"X11 |
25 |
217 |
47.5 |
60 |
41 |
41 |
PN200 |
|
1FG9-20OG |
1.11/16"X12 |
G1.1/4"X11 |
25 |
222 |
47.5 |
60 |
41 |
50 |
PN200 |
|
1FG9-24OG |
2"X12 |
G1.1/2"X11 |
29 |
224 |
51.5 |
65.5 |
50 |
55 |
PN200 |
|
Note: 1.F end is connected with DIN 3852 port. 2. PN = Nominal Pressure |
|||||||||
| Форма | Elbow |
|---|---|
| Тип крепления | Face Seal |
| Тип резьбы | Male |
| Connection Type | BSP, ORFS |
