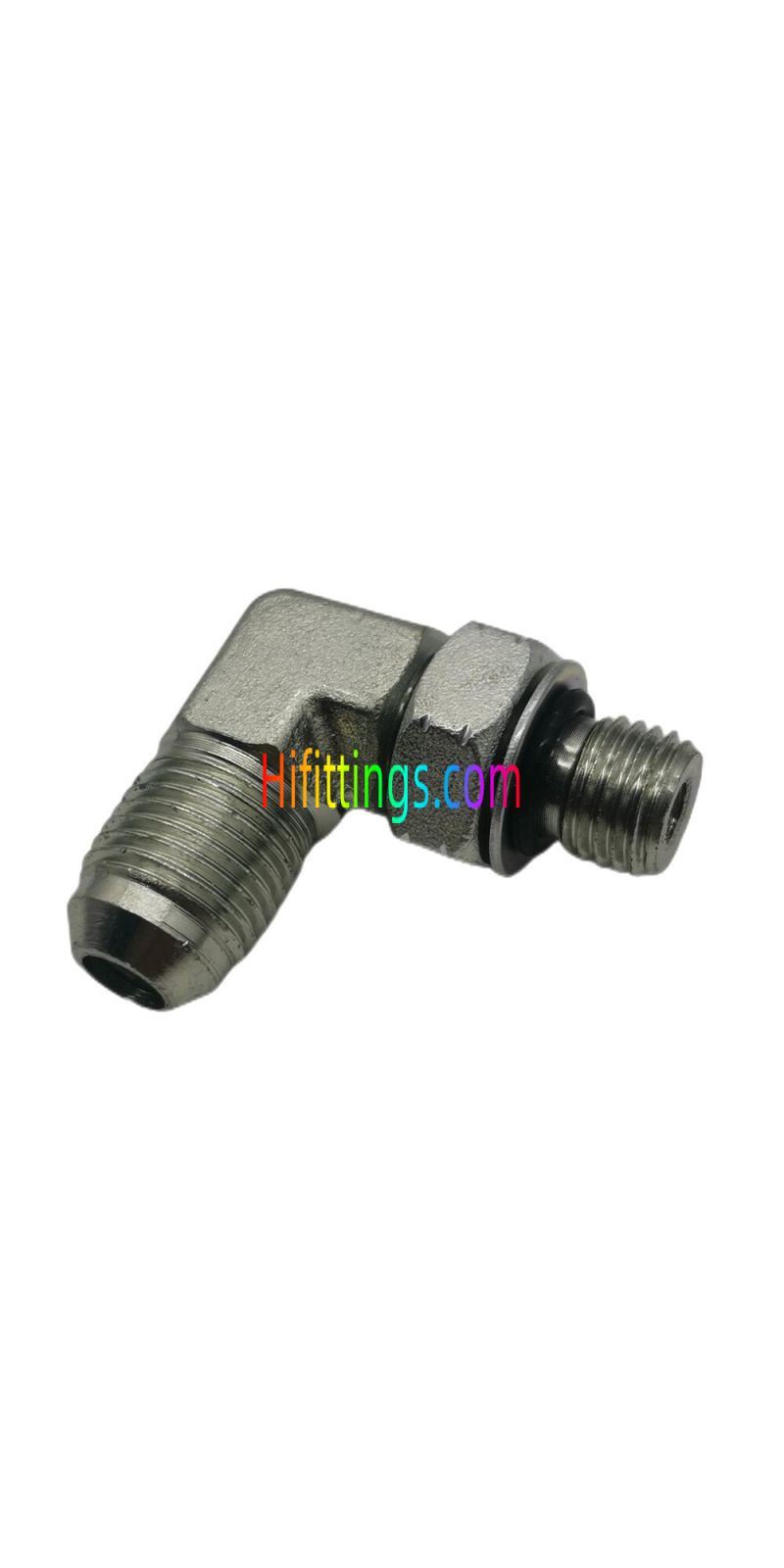

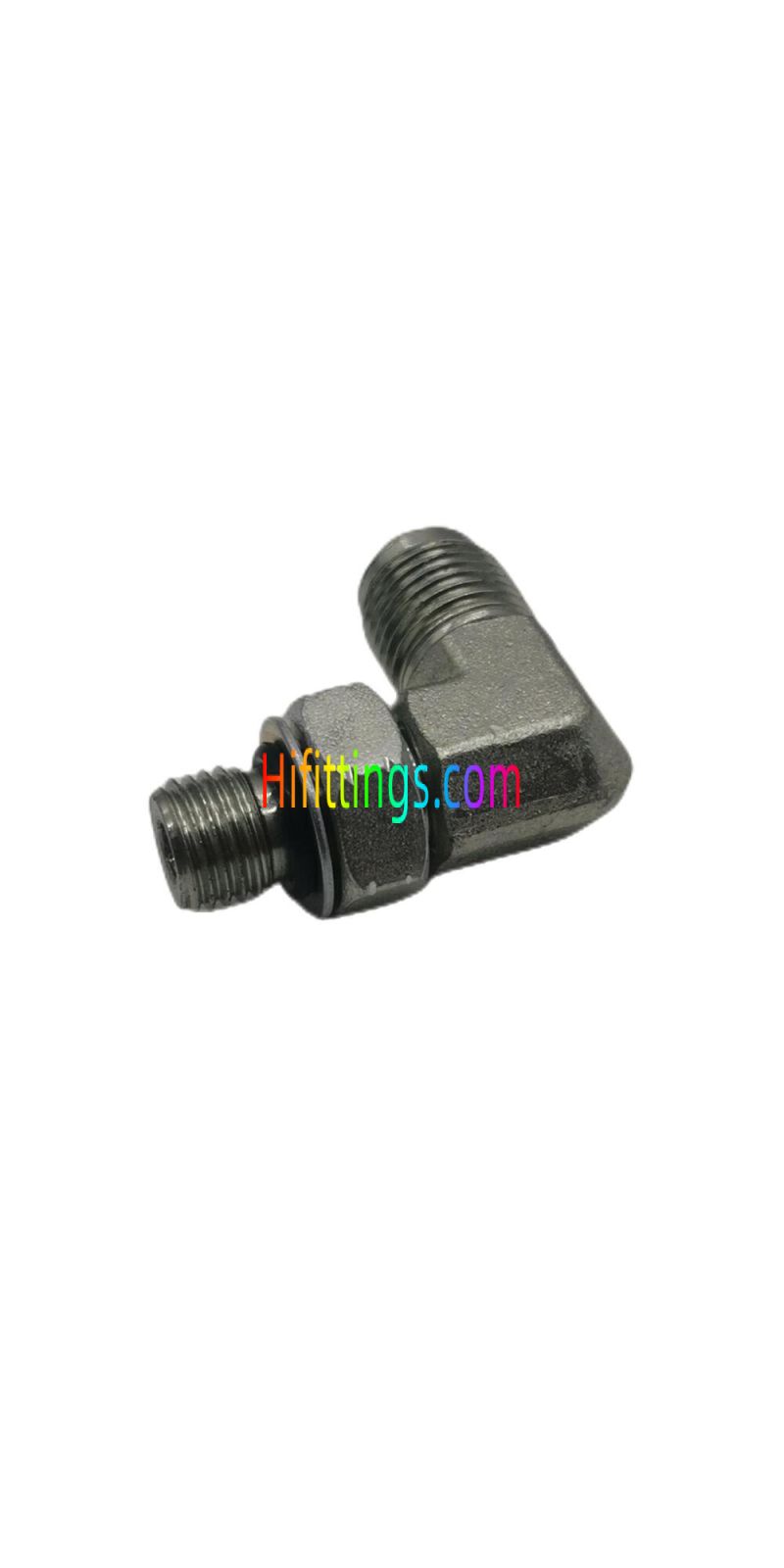

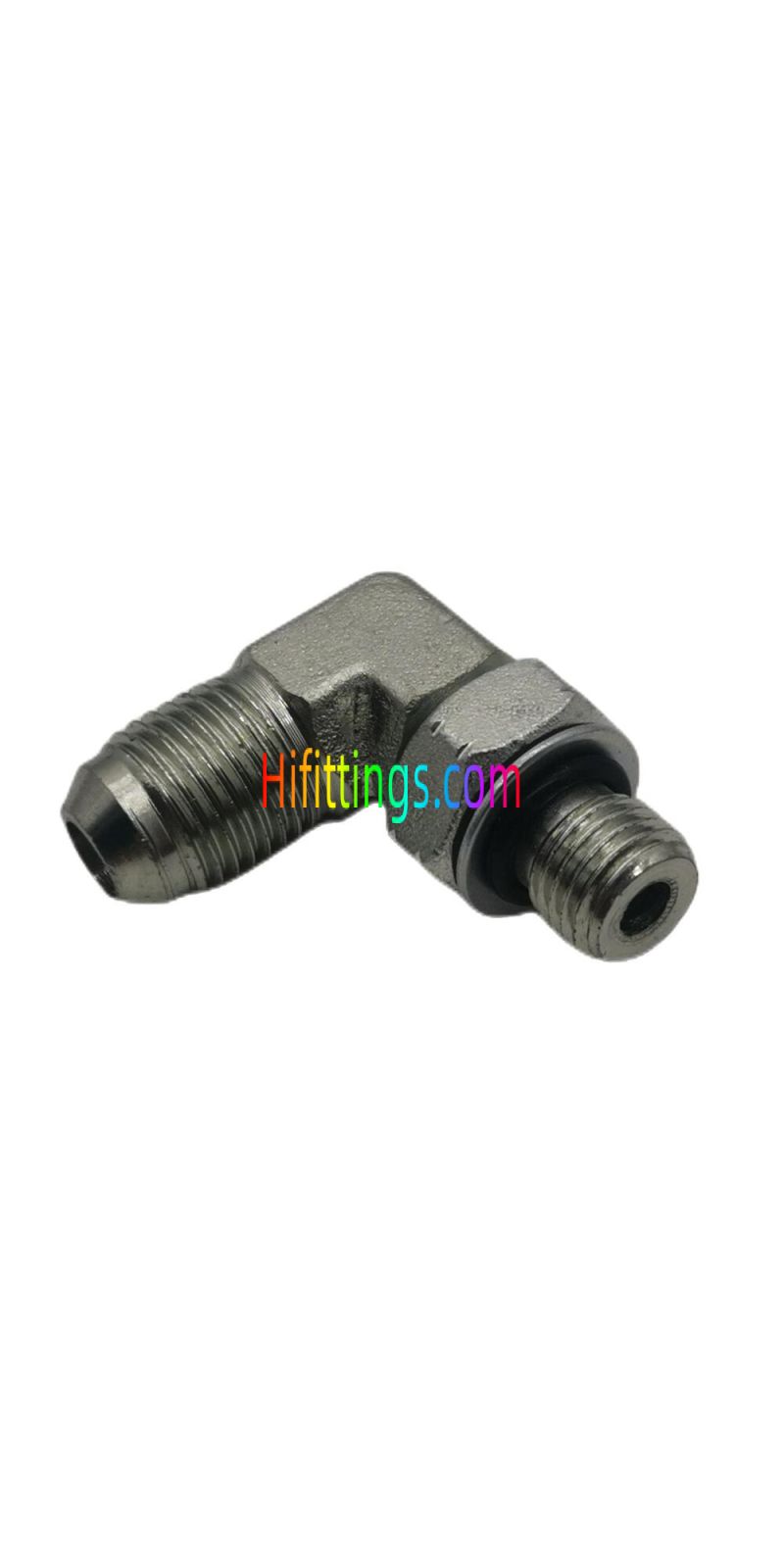

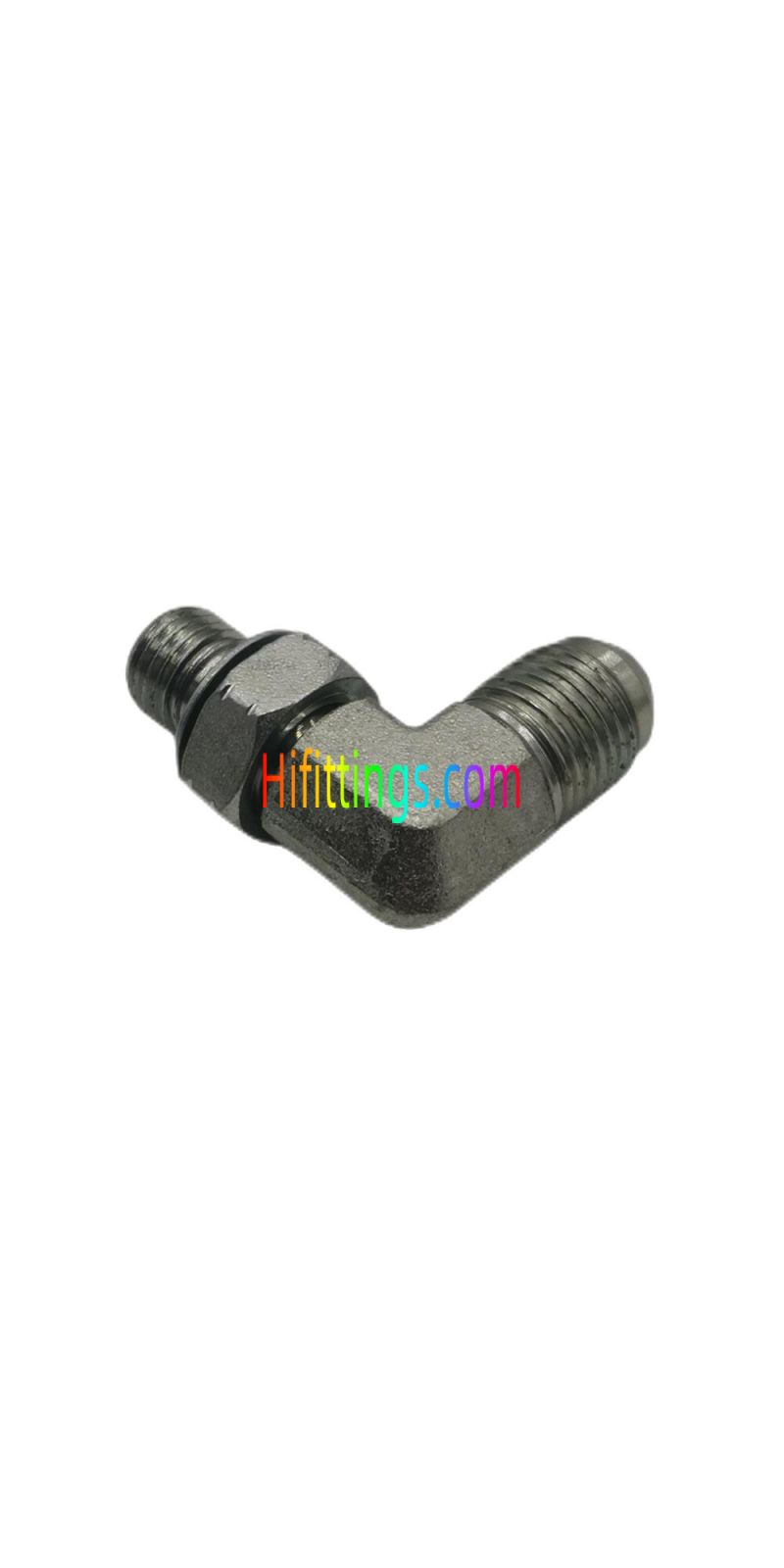

90 Degree Elbow SAE O-Ring Boss L-Series ISO 11926-3 / JIC Male 74 Degree Cone Flared Hydraulic Adapter Tube Fittings 1JO9-OG
|
Part NO. |
E |
F |
F End |
A |
B |
S1 |
S2 |
Working Pressure bar |
|
1JO9-04-03OG |
7/16"X20 |
3/8"X24 |
903 |
24.5 |
28 |
11 |
14 |
PN345 |
|
1JO9-04OG |
7/16"X20 |
7/16"X20 |
904 |
24.5 |
27.2 |
11 |
17 |
PN345 |
|
1JO9-04-05OG |
7/16"X20 |
1/2"X20 |
905 |
26.6 |
29.9 |
14 |
17 |
PN345 |
|
1JO9-04-06OG |
7/16"X20 |
9/16"X18 |
906 |
26.6 |
31.8 |
14 |
19 |
PN345 |
|
1JO9-05-04OG |
1/2"X20 |
7/16"X20 |
904 |
26.6 |
30 |
14 |
17 |
PN345 |
|
1JO9-05OG |
1/2"X20 |
1/2"X20 |
905 |
26.6 |
29 |
14 |
17 |
PN345 |
|
1JO9-05-06OG |
1/2"X20 |
9/16"X18 |
906 |
26.6 |
31.8 |
14 |
19 |
PN345 |
|
1JO9-06-04OG |
9/16"X18 |
7/16"X20 |
904 |
26.9 |
30 |
14 |
17 |
PN345 |
|
1JO9-06-05OG |
9/16"X18 |
1/2"X20 |
905 |
26.9 |
29.9 |
14 |
17 |
PN345 |
|
1JO9-06OG |
9/16"X18 |
9/16"X18 |
906 |
26.9 |
31.8 |
14 |
19 |
PN345 |
|
1JO9-06-08OG |
9/16"X18 |
3/4"X16 |
908 |
30 |
36.8 |
19 |
24 |
PN310 |
|
1JO9-08-04OG |
3/4"X16 |
7/16"X20 |
904 |
32 |
33 |
19 |
17 |
PN310 |
|
1JO9-08-06OG |
3/4"X16 |
9/16"X18 |
906 |
33 |
33.5 |
19 |
19 |
PN310 |
|
1JO9-08OG |
3/4"X16 |
3/4"X16 |
908 |
33 |
36.8 |
19 |
24 |
PN310 |
|
1JO9-08-10OG |
3/4"X16 |
7/8"X14 |
910 |
34.8 |
44 |
22 |
27 |
PN240 |
|
1JO9-08-12OG |
3/4"X16 |
1.1/16"X12 |
912 |
37.9 |
51 |
27 |
32 |
PN240 |
|
1JO9-10-08OG |
7/8"X14 |
3/4"X16 |
908 |
38 |
40 |
22 |
27 |
PN240 |
|
1JO9-10OG |
7/8"X14 |
7/8"X14 |
910 |
37.8 |
44 |
22 |
27 |
PN240 |
|
1JO9-10-12OG |
7/8"X14 |
1.1/16"X12 |
912 |
41 |
51 |
27 |
32 |
PN240 |
|
1JO9-12-08OG |
1.1/16"X12 |
3/4"X16 |
908 |
45 |
44 |
27 |
24 |
PN240 |
|
1JO9-12-10OG |
1.1/16"X12 |
7/8"X14 |
910 |
44.2 |
47 |
27 |
27 |
PN240 |
|
1JO9-12OG |
1.1/16"X12 |
1.1/16"X12 |
912 |
44.2 |
51 |
27 |
32 |
PN240 |
|
1JO9-12-16OG |
1.1/16"X12 |
1.5/16"X12 |
916 |
47.8 |
54.5 |
33 |
41 |
PN210 |
|
1JO9-14OG |
1.3/16"X12 |
1.3/16"X12 |
914 |
47.5 |
53 |
30 |
36 |
PN210 |
|
1JO9-14-16OG |
1.3/16"X12 |
1.5/16"X12 |
916 |
48.5 |
54.5 |
33 |
41 |
PN210 |
|
1JO9-16-12OG |
1.5/16"X12 |
1.1/16"X12 |
912 |
48.8 |
54.5 |
33 |
32 |
PN210 |
|
1JO9-16-14OG |
1.5/16"X12 |
1.3/16"X12 |
914 |
49 |
56 |
33 |
36 |
PN210 |
|
1JO9-16OG |
1.5/16"X12 |
1.5/16"X12 |
916 |
48.8 |
54.5 |
33 |
41 |
PN210 |
|
1JO9-16-20OG |
1.5/16"X12 |
1.5/8"X12 |
920 |
53.8 |
59 |
41 |
50 |
PN170 |
|
1JO9-20-16OG |
1.5/8"X12 |
1.5/16X12 |
916 |
55.5 |
59.5 |
41 |
41 |
PN170 |
|
1JO9-20OG |
1.5/8"X12 |
1.5/8"X12 |
920 |
55.3 |
59 |
41 |
50 |
PN170 |
|
1JO9-20-24OG |
1.5/8" X12 |
1.7/8"X12 |
924 |
59.4 |
63 |
48 |
55 |
PN140 |
|
1JO9-24OG |
1.7/8"X12 |
1.7/8"X12 |
924 |
62.5 |
63 |
48 |
55 |
PN140 |
|
1JO9-32OG |
2.1/2"x12 |
2.1/2"x12 |
932 |
80 |
76 |
63 |
70 |
PN105 |
|
Note：1Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube. 2 F end is connected with ISO 11926-1port. 2.PN = Nominal Pressure |
||||||||
| Форма | Elbow |
|---|---|
| Тип крепления | Cone Flared |
| Тип резьбы | Male |
| Connection Type | JIC, UNF |
