| ISO7241-A Specifications | ||||||||
| Body Size(in) | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 |
| Rated Pressure (PSI) | 5000 | 5000 | 4000 | 4000 | 3000 | 3000 | 2500 | 2000 |
| Rated Flow(GPM) | 3 | 6 | 12 | 28 | 50 | 88 | 120 | 240 |
| Temperature Range(NBR) | -20℃ 〜+120C | |||||||

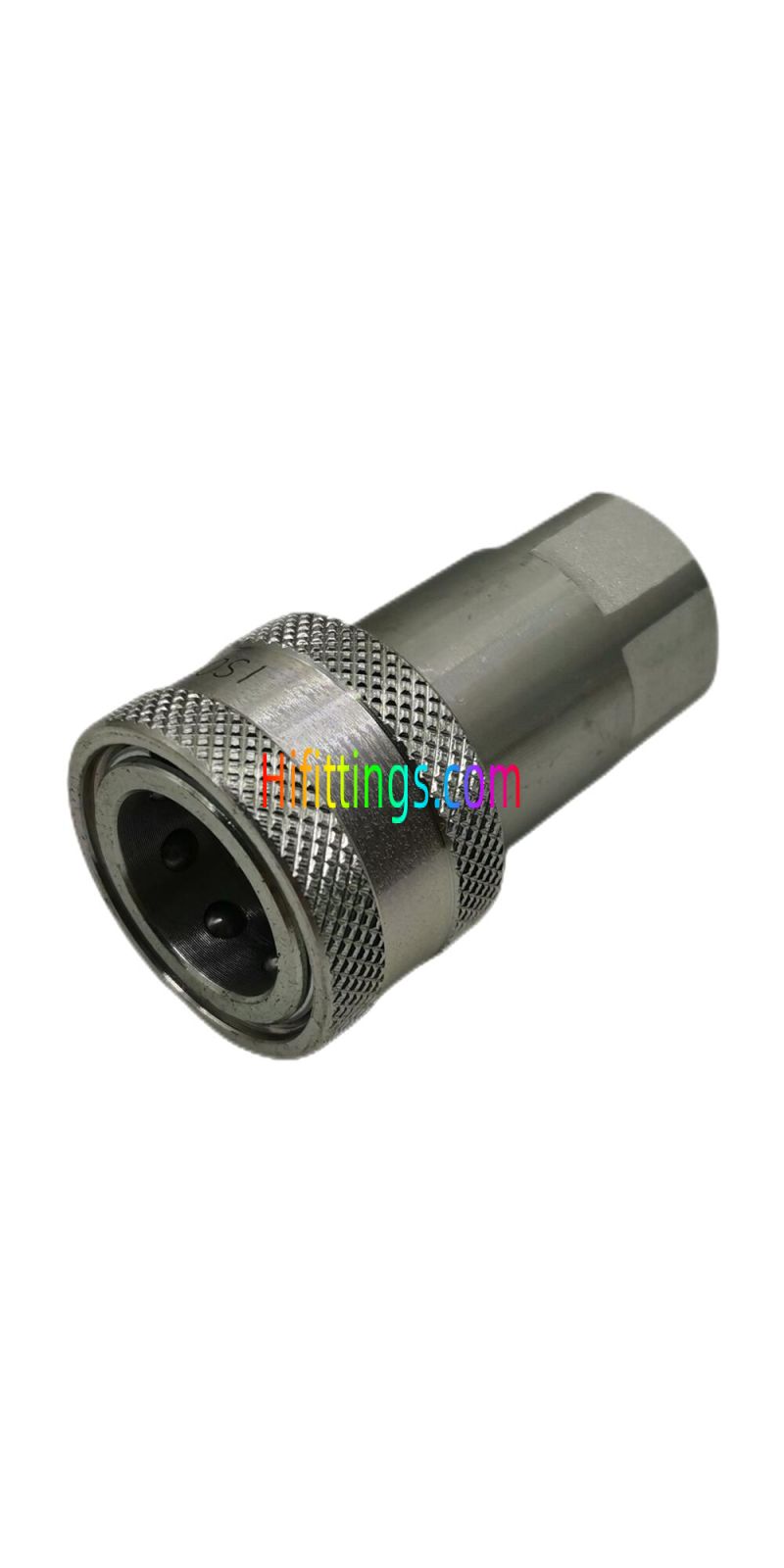

Socket
| Part NO. | ISO | Thread | LS | φD | S1 | A |
| A-G02SF | 6.3 | Gl/4 | 50 | 26 | 19 | 13 |
| A-G03SF | 10 | G3/8 | 56 | 31.5 | 22 | 14 |
| A-G04SF | 12.5 | Gl/2 | 66 | 38.5 | 27 | 16 |
| A-G06SF | 20 | G3/4 | 80 | 48 | 34 | 18 |
| A-G08SF | 25 | G1 | 94 | 56 | 41 | 21 |
| A-G10SF | 31.5 | Gl-l/4 | 117 | 69.5 | 50 | 25 |
| A-G12SF | 40 | Gl-1/2 | 133 | 84 | 60 | 27 |
| A-G16SF | 50 | G2 | 165 | 99 | 75 | 26 |

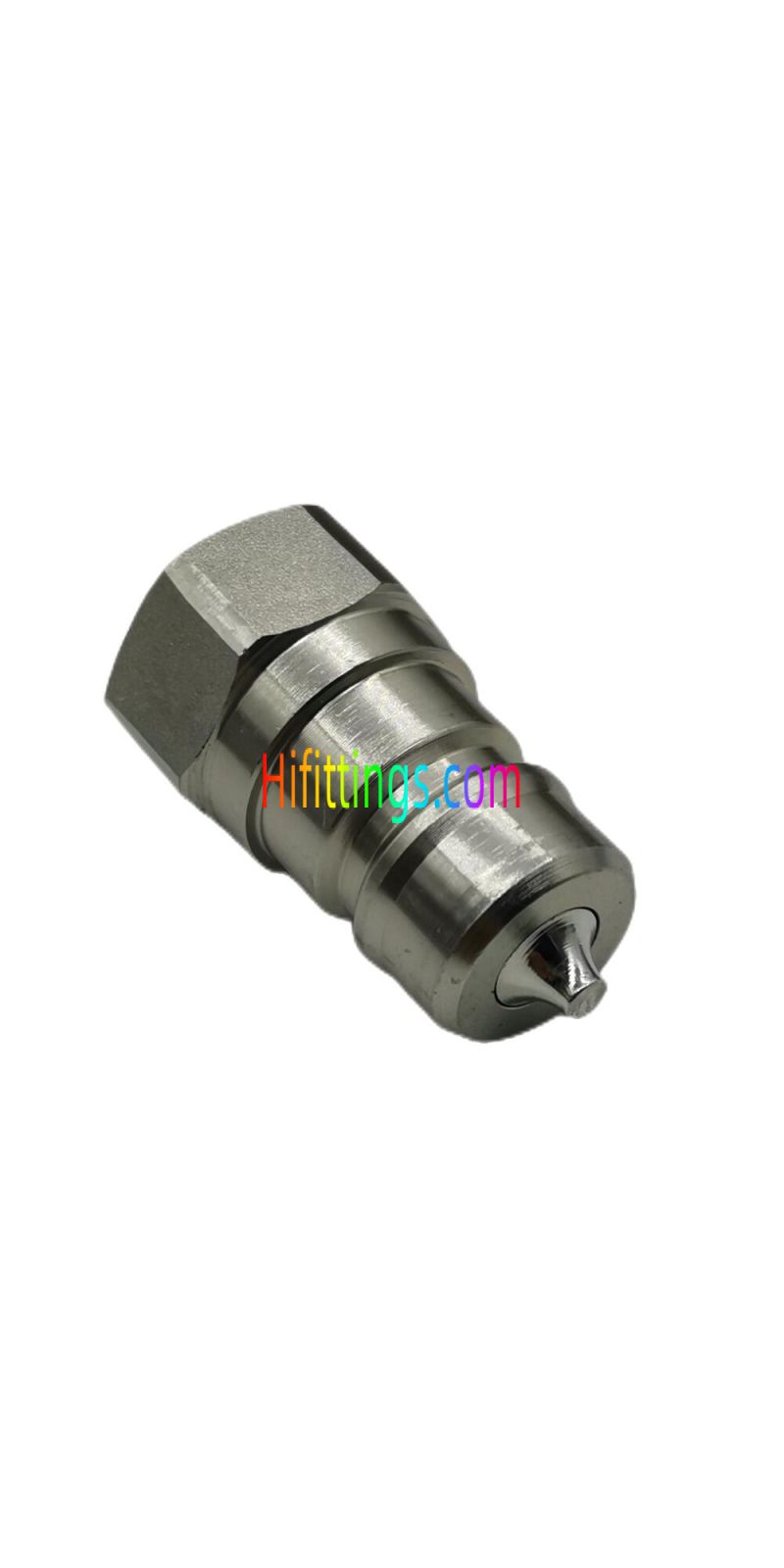

Plug
| Part NO. | ISO | Thread | LP | d | C | S2 |
| A-G02PF | 6.3 | Gl/4 | 35.5 | 11.8 | 15 | 19 |
| A-G03PF | 10 | G3/8 | 36.5 | 17.3 | 21.4 | 22 |
| A-G04PF | 12.5 | Gl/2 | 43.5 | 20.5 | 27 | 27 |
| A-G06PF | 20 | G3/4 | 57 | 29 | 28 | 34 |
| A-G08PF | 25 | G1 | 59.5 | 34.3 | 36 | 41 |
| A-G10PF | 31.5 | Gl-l/4 | 75 | 45 | 46 | 50 |
| A-G12PF | 40 | Gl-1/2 | 83.5 | 55 | 52 | 60 |
| A-G16PF | 50 | G2 | 105 | 65 | 64 | 75 |

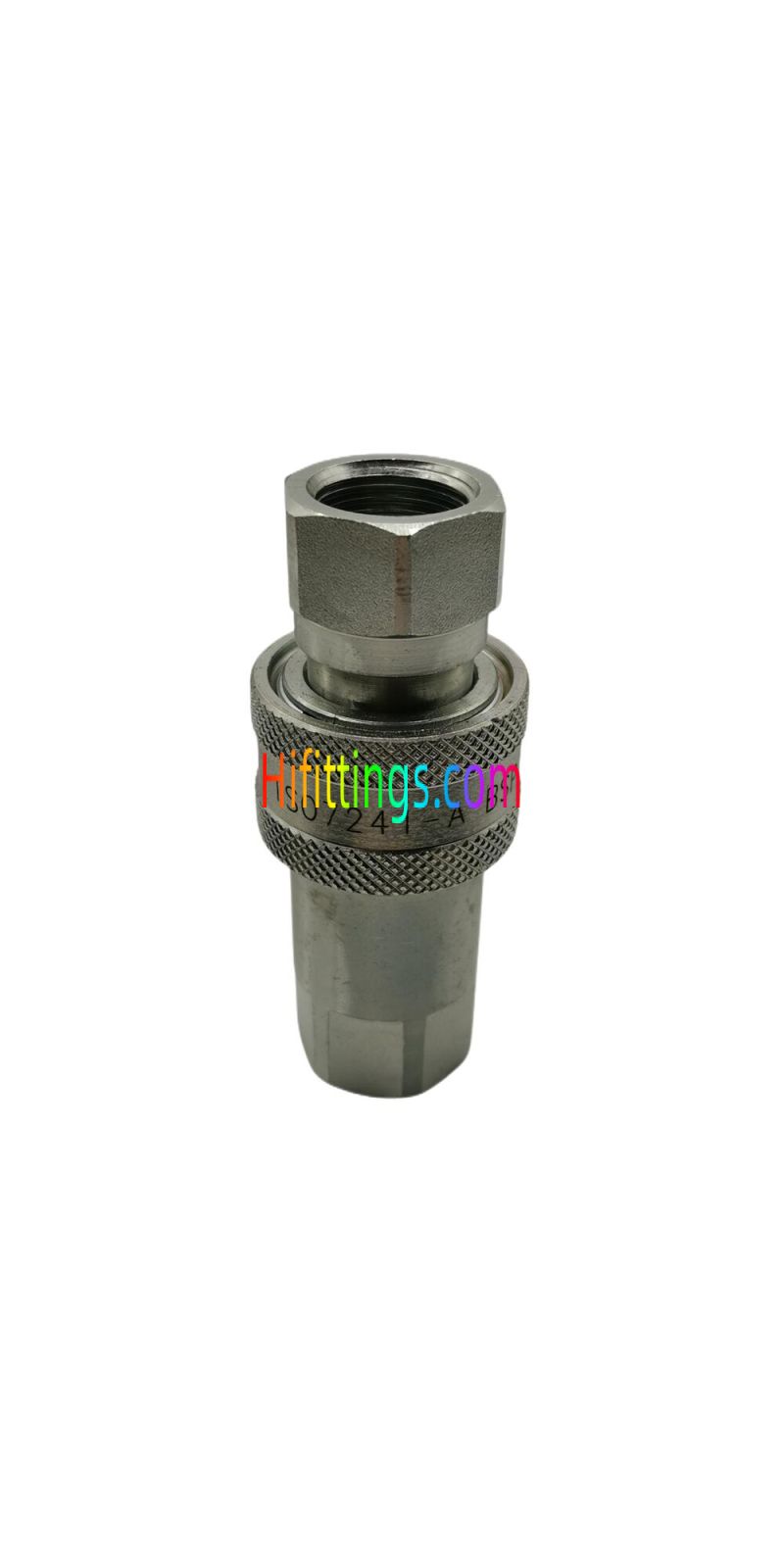

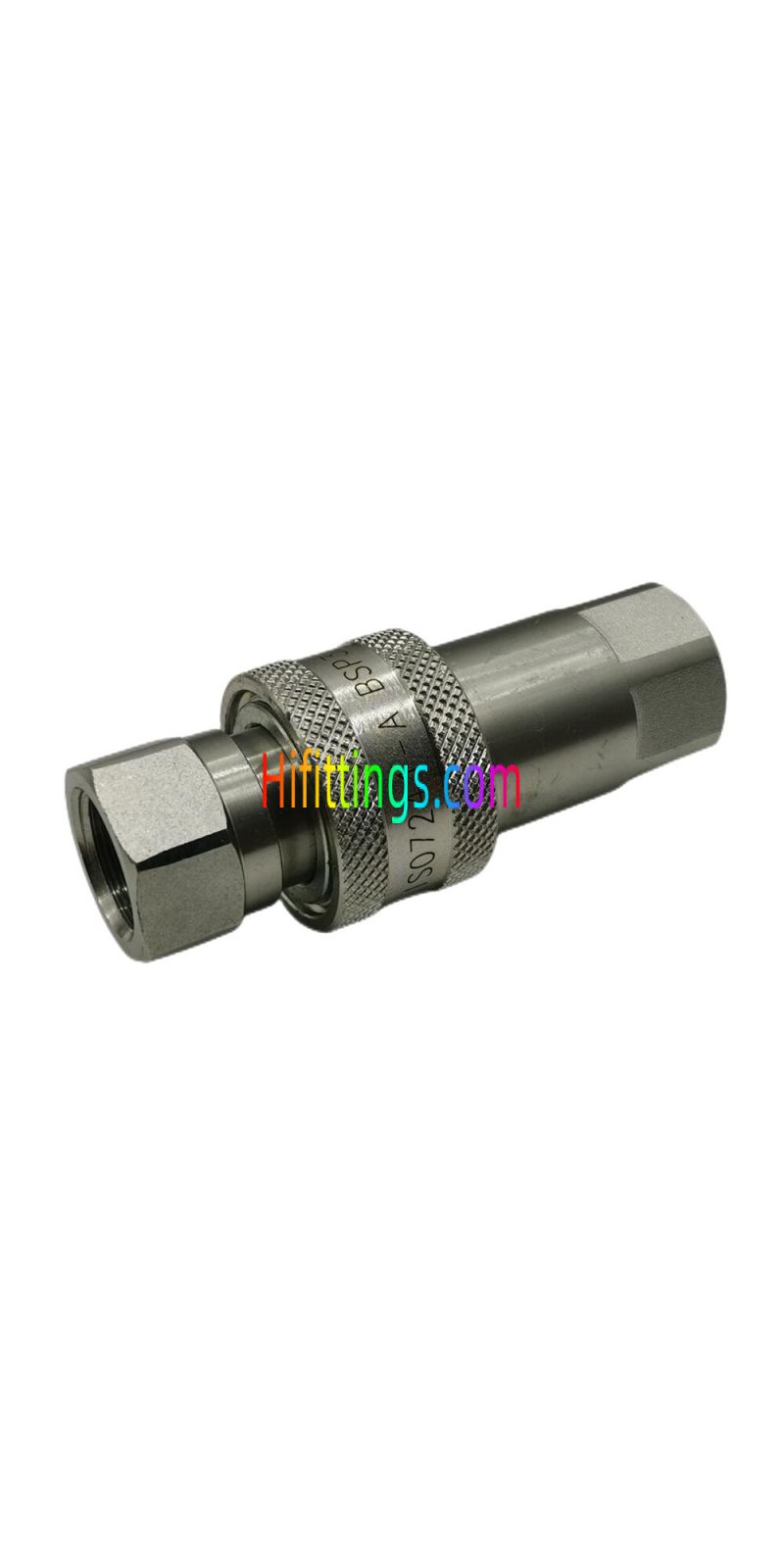

Coupling Fitting
| Part NO. | ISO | Thread | L | φD | S1,S2 |
| A-G02SP | 6.3 | Gl/4 | 71 | 26 | 19 |
| A-G03SP | 10 | G3/8 | 75 | 31.5 | 22 |
| A-G04SP | 12.5 | Gl/2 | 88 | 38.5 | 27 |
| A-G06SP | 20 | G3/4 | 110 | 48 | 34 |
| A-G08SP | 25 | G1 | 119.5 | 56 | 41 |
| A-G1OSP | 31.5 | Gl-l/4 | 150 | 69.5 | 50 |
| A-G12SP | 40 | Gl-1/2 | 167.5 | 84 | 60 |
| A-G16SP | 50 | G2 | 210.5 | 99 | 75 |
| Тип резьбы | Female |
|---|
