| ISO7211-B Specifications | ||||||
| Body Size(in) | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 |
| Rated Pressure (PSI) | 5000 | 5000 | 4000 | 4000 | 3000 | 3000 |
| Rated Flow(GPM) | 1 | 3 | 6 | 12 | 28 | 50 |
| Temperature Range(NBR) | -20℃ 〜+120C | |||||

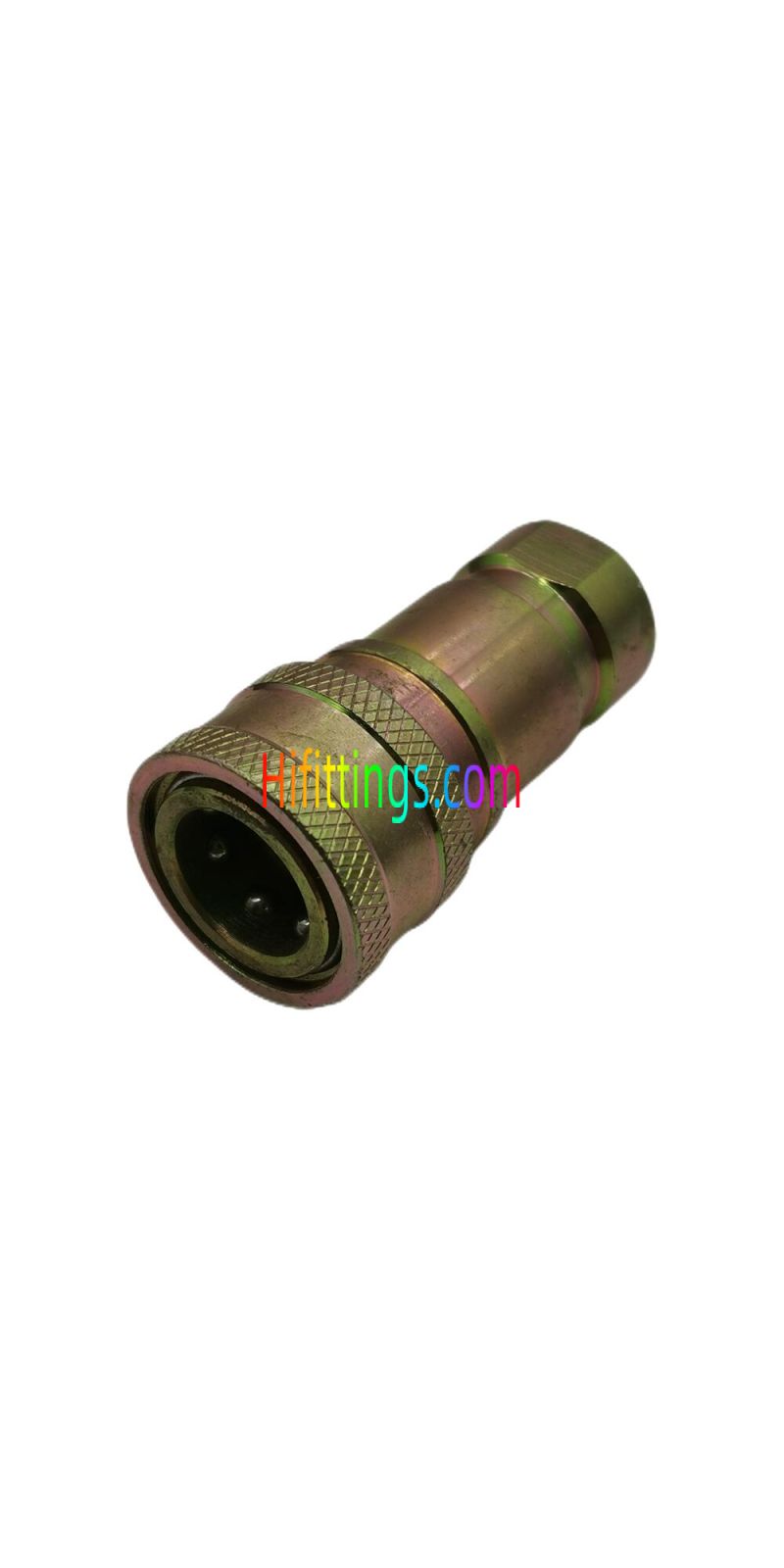

Socket
| Part NO. | ISO | Thread | LS | φD | S1 | A |
| B-G01SF | 5 | G1/8 | 48 | 24 | 17 | 9.5 |
| B-G02SF | 6.3 | G1/4 | 58 | 28.5 | 19 | 13 |
| B-G03SF | 10 | G3/8 | 65 | 35 | 24 | 13 |
| B-G04SF | 12.5 | G1/2 | 74 | 44.5 | 28.5 | 20.5 |
| B-G06SF | 20 | G3/4 | 92 | 54 | 36 | 22 |
| B-G08SF | 25 | G1 | 103 | 63.5 | 41 | 23 |

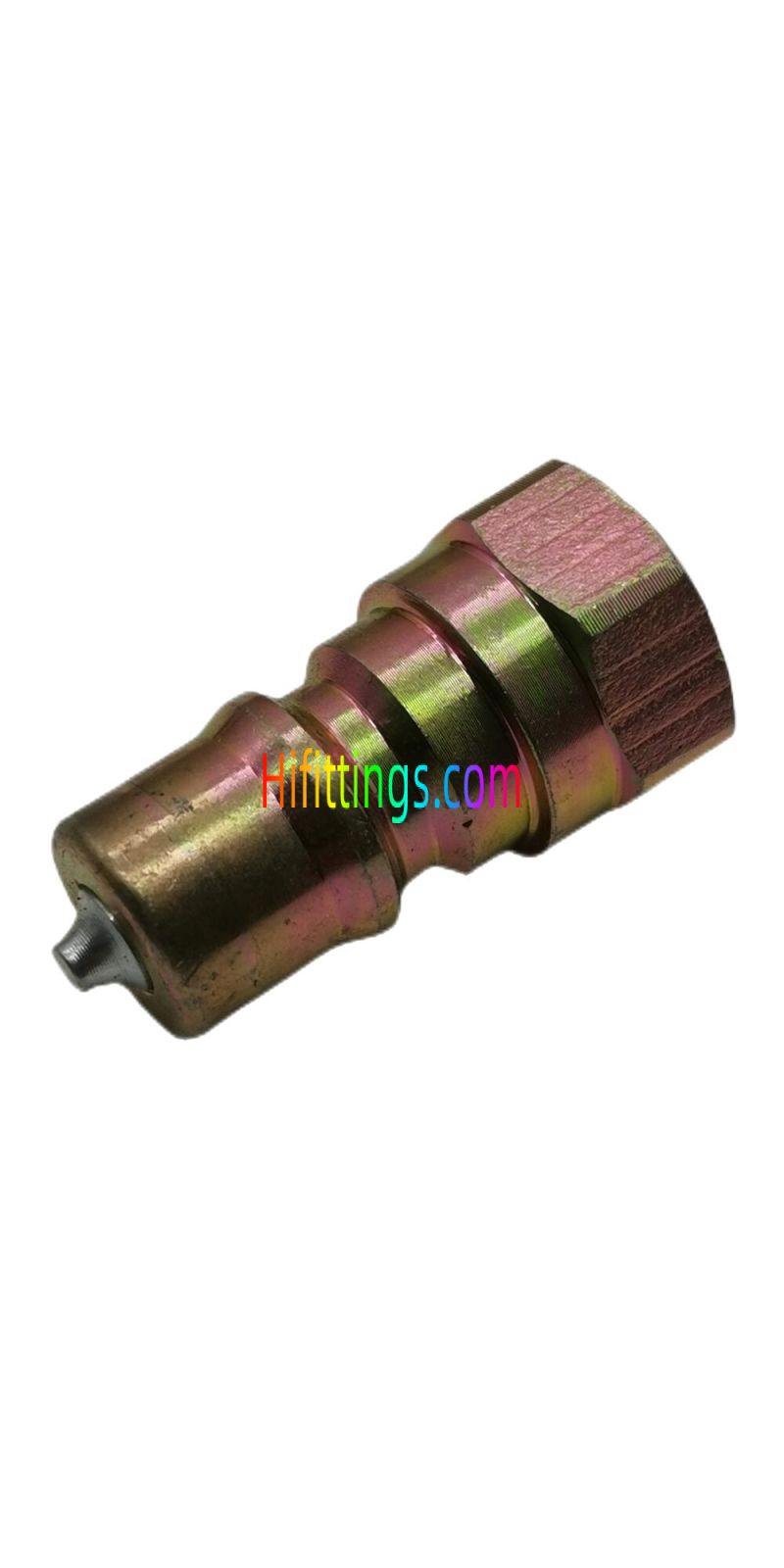

Plug
| Part NO. | ISO | Thread | LP | φd | C | S2 |
| B-G01PF | 5 | G1/8 | 29 | 10.8 | 19 | 14 |
| B-G02PF | 6.3 | G1/4 | 36 | 14.2 | 22.8 | 19 |
| B-G03PF | 10 | G3/8 | 40 | 19 | 25 | 24 |
| B-G04PF | 12.5 | G1/2 | 46.5 | 23.5 | 28 | 28.5 |
| B-G06PF | 20 | G3/4 | 56 | 31.5 | 36 | 36 |
| B-G08PF | 25 | G1 | 63 | 37.8 | 45 | 41 |

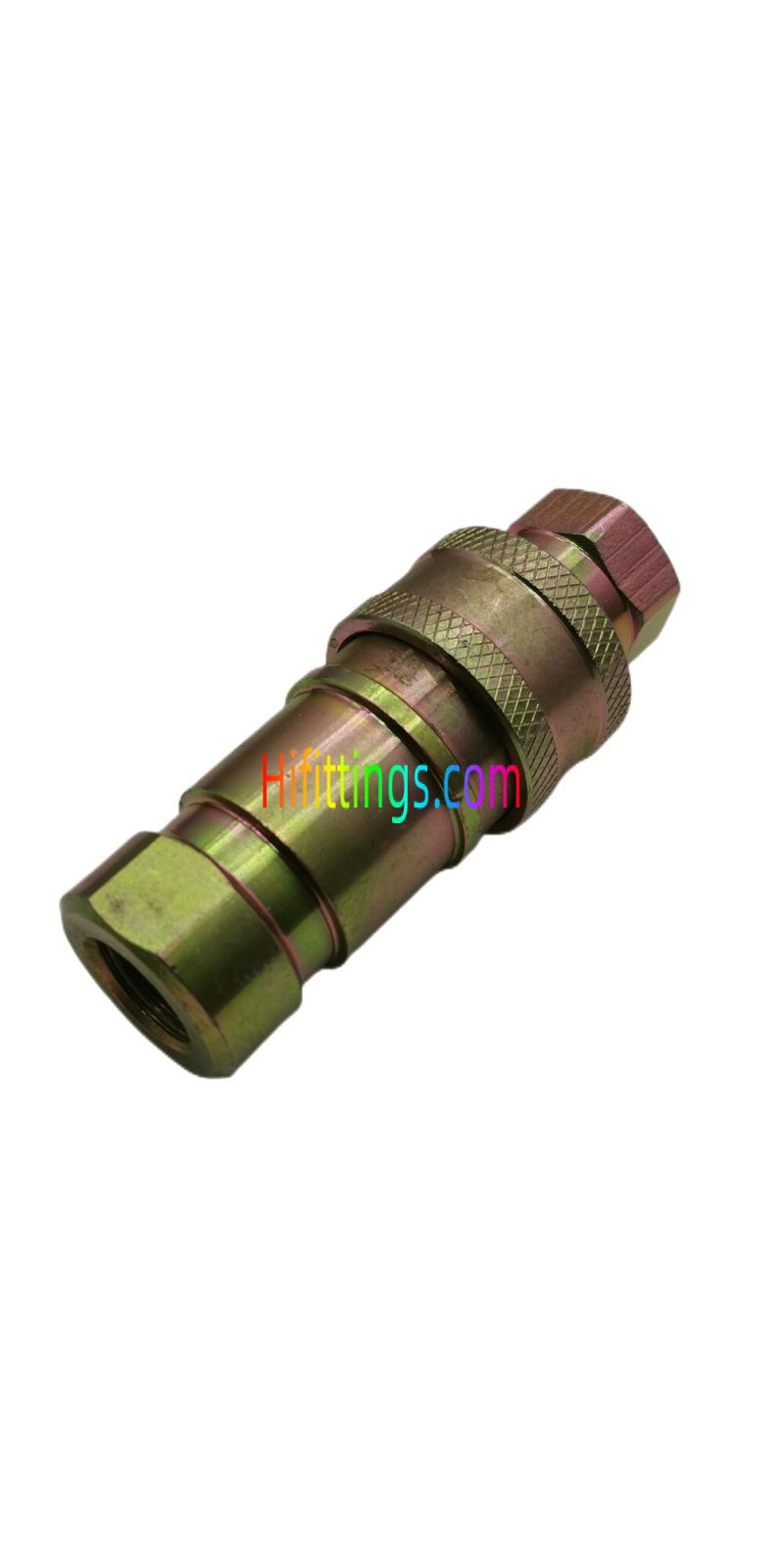

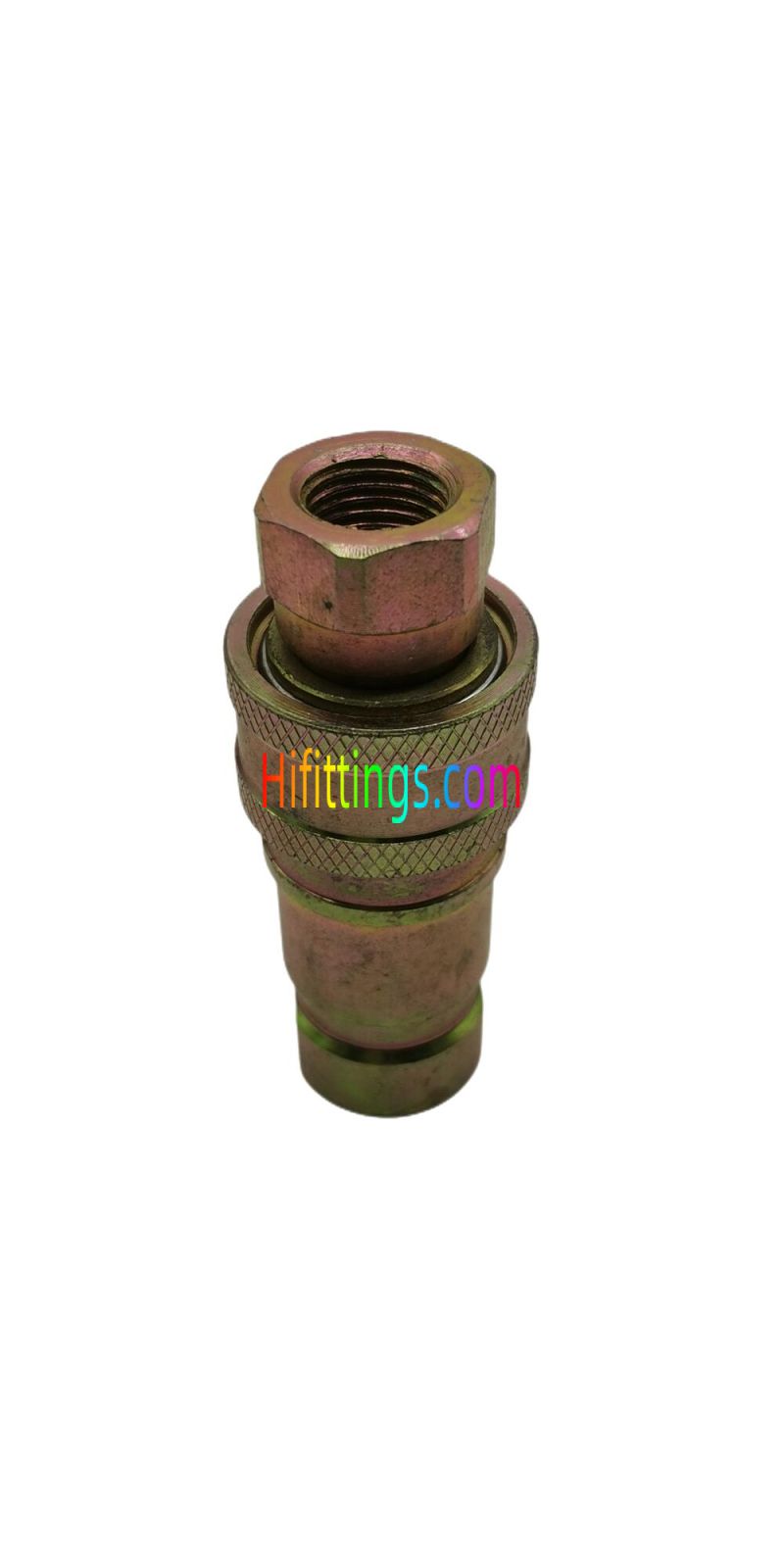

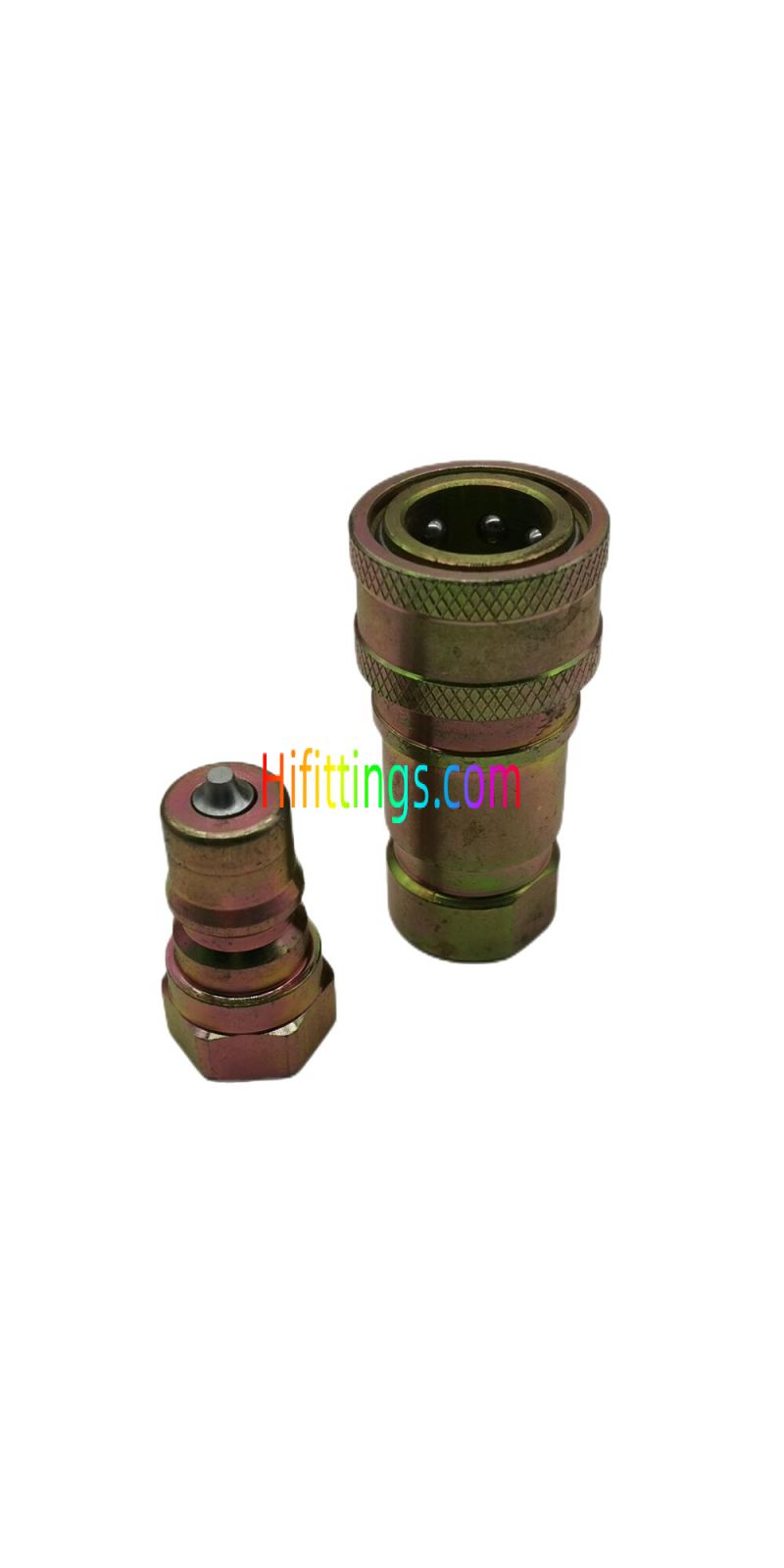

Multi-Purpose Close Type Hydraulic Quick Couplings, ISO 7241 series B Interchange
| Part NO. | ISO | Thread | L | φD | S1 | S2 |
| B-G01SP | 5 | G1/8 | 58.8 | 24 | 17 | 14 |
| B-G02SP | 6.3 | G1/4 | 72 | 28.5 | 19 | 19 |
| B-G03SP | 10 | G3/8 | 80.5 | 35 | 24 | 24 |
| B-G04SP | 12. 5 | G1/2 | 93. 5 | 44.5 | 28.5 | 28.5 |
| B-G06SP | 20 | G3/4 | 112.5 | 54 | 36 | 36 |
| B-G08SP | 25 | G1 | 126.5 | 63.5 | 41 | 41 |
| Тип резьбы | Female |
|---|
