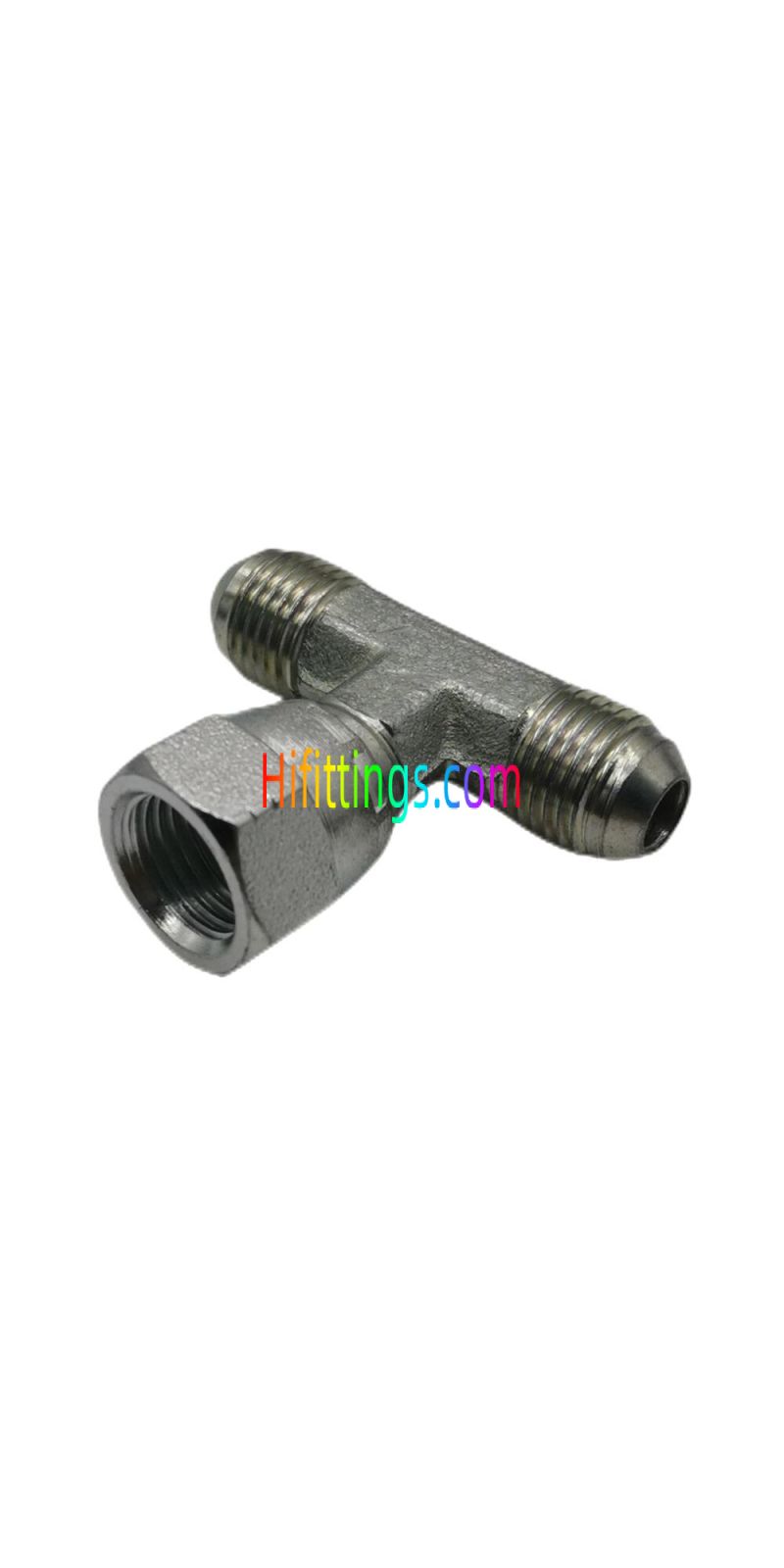

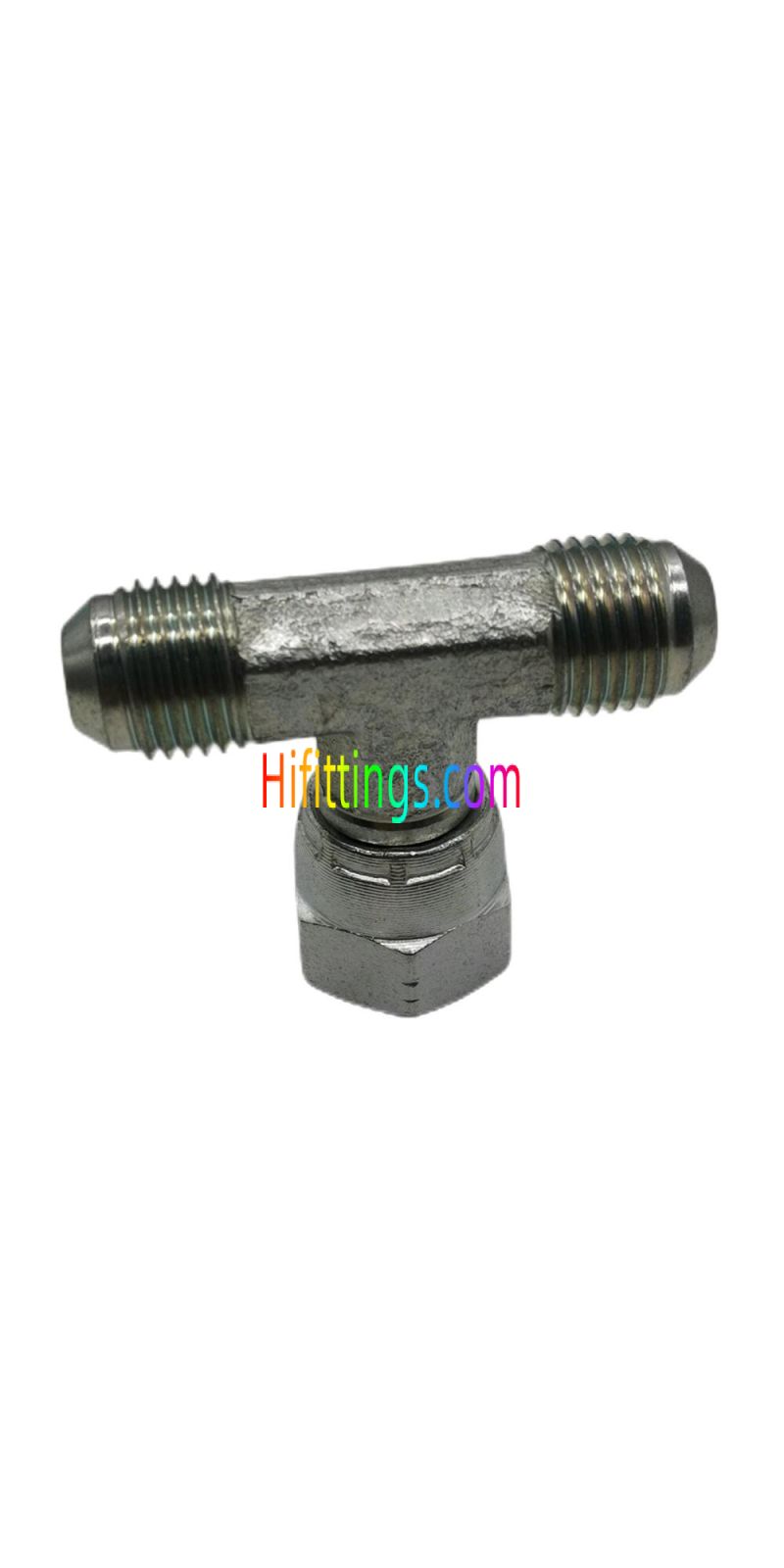

JIC Male 74° Cone / JIC Female Branch Tee Flared Tube Fittings BJ
|
Part NO. |
E |
F |
G |
A |
B |
C |
S1 |
S2 |
Working Pressure bar |
|
BJ-04 |
7/16"X20 |
7/16"X20 |
7/16"X20 |
24.5 |
9 |
24.5 |
11 |
15 |
PN345 |
|
BJ-05 |
1/2"X20 |
1/2"X20 |
1/2"X20 |
26.5 |
9.5 |
26.5 |
14 |
17 |
PN345 |
|
BJ-06 |
9/16"X18 |
9/16"X18 |
9/16"X18 |
26.9 |
10.5 |
26.9 |
14 |
19 |
PN345 |
|
BJ-08 |
3/4"X16 |
3/4"X16 |
3/4"X16 |
32 |
11 |
32 |
19 |
24 |
PN310 |
|
BJ-10 |
7/8"X14 |
7/8"X14 |
7/8"X14 |
37.8 |
14 |
37.8 |
22 |
27 |
PN240 |
|
BJ-12 |
1.1/16"X12 |
1.1/16"X12 |
1.1/16"X12 |
44.2 |
15 |
44.2 |
27 |
32 |
PN240 |
|
BJ-14 |
1.3/16"X12 |
1.3/16"X12 |
1.3/16"X12 |
47.5 |
15 |
47.5 |
30 |
36 |
PN210 |
|
BJ-16 |
1.5/16"X12 |
1.5/16"X12 |
1.5/16"X12 |
49 |
16 |
49 |
33 |
41 |
PN210 |
|
BJ-20 |
1.5/8"X12 |
1.5/8"X12 |
1.5/8"X12 |
56 |
17 |
56 |
41 |
50 |
PN170 |
|
BJ-24 |
1.7/8"X12 |
1.7/8"X12 |
1.7/8"X12 |
62.5 |
20 |
62.5 |
48 |
55 |
PN140 |
|
BJ-32 |
2.1/2"X12 |
2.1/2"X12 |
2.1/2"X12 |
78 |
24.5 |
78 |
63 |
75 |
PN105 |
|
Note：1.Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube. 2.PN = Nominal Pressure |
|||||||||
| Форма | Tee |
|---|---|
| Тип крепления | Cone Flared |
| Тип резьбы | Male-Female |
| Connection Type | JIC |
