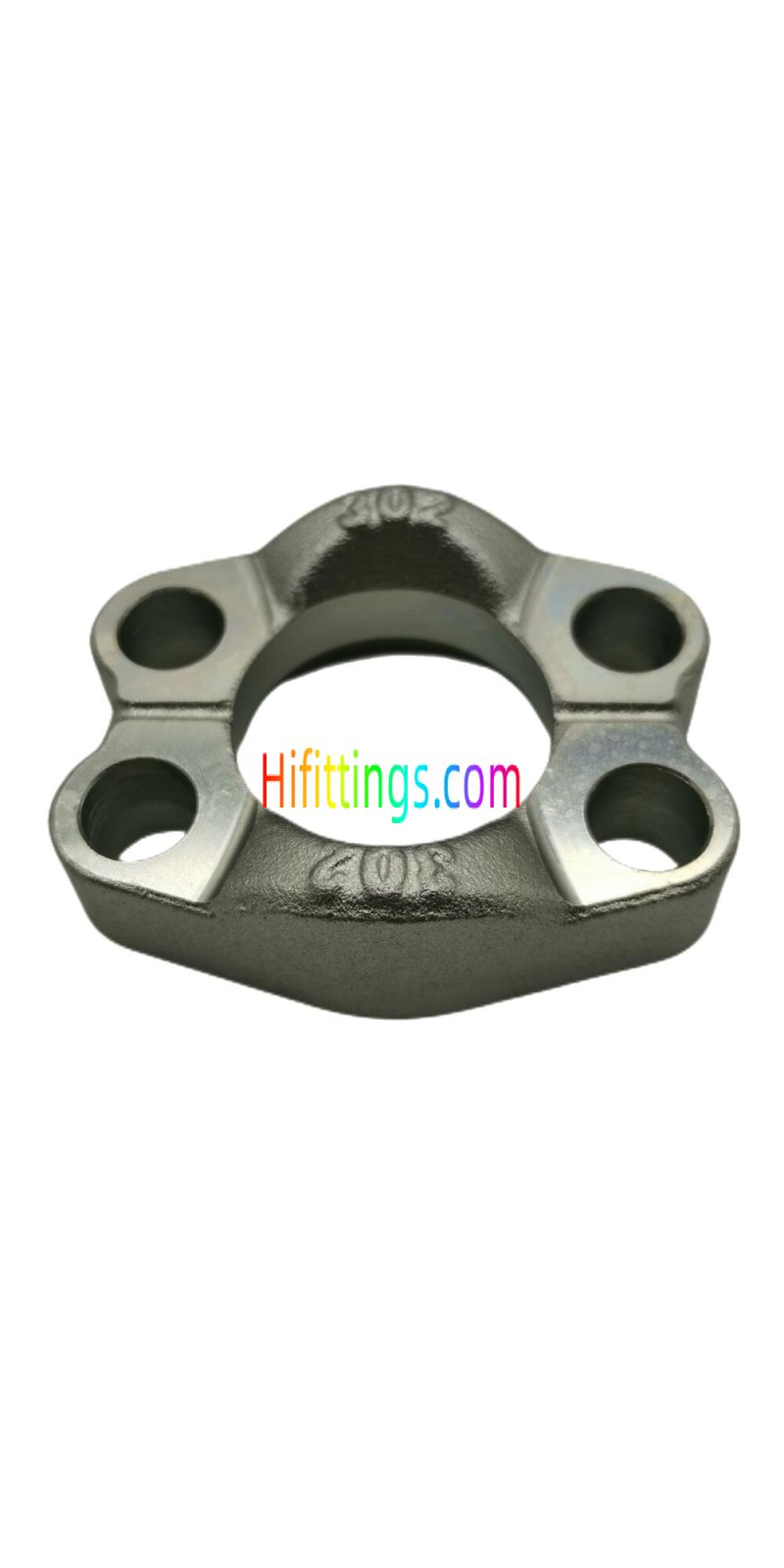

SAE J518 S-Series Whole Flange Clamps ISO 6162-2 FS-W
|
Part NO. |
Flange Size |
A |
B |
d |
h |
M |
N |
Bolt |
O-Ring |
Working Pressure bar |
|
FS-08W |
1/2" |
56.3 |
49.2 |
9 |
7.2 |
40.5 |
18.2 |
M8X30 |
210 |
PN420
|
|
FS-12W |
3/4" |
71.4 |
61.8 |
11 |
8.2 |
50.8 |
23.8 |
M10X35 |
214 |
|
|
FS-16W |
1" |
81 |
71.4 |
13 |
9 |
57.2 |
27.8 |
M12X45 |
219 |
|
|
FS-20W |
1.1/4" |
95.3 |
79.2 |
15 |
9.8 |
66.7 |
31.8 |
M14X50 |
222 |
|
|
FS-24W |
1.1/2" |
112.8 |
96.8 |
17 |
12 |
79.4 |
36.6 |
M16X55 |
225 |
|
|
FS-32W |
2" |
133.4 |
115.6 |
21 |
12 |
96.8 |
44.4 |
M20X70 |
228 |
| Connection Type | Flange |
|---|---|
| Тип резьбы | - |
| Форма | Straight |
| Тип крепления | Flange |
