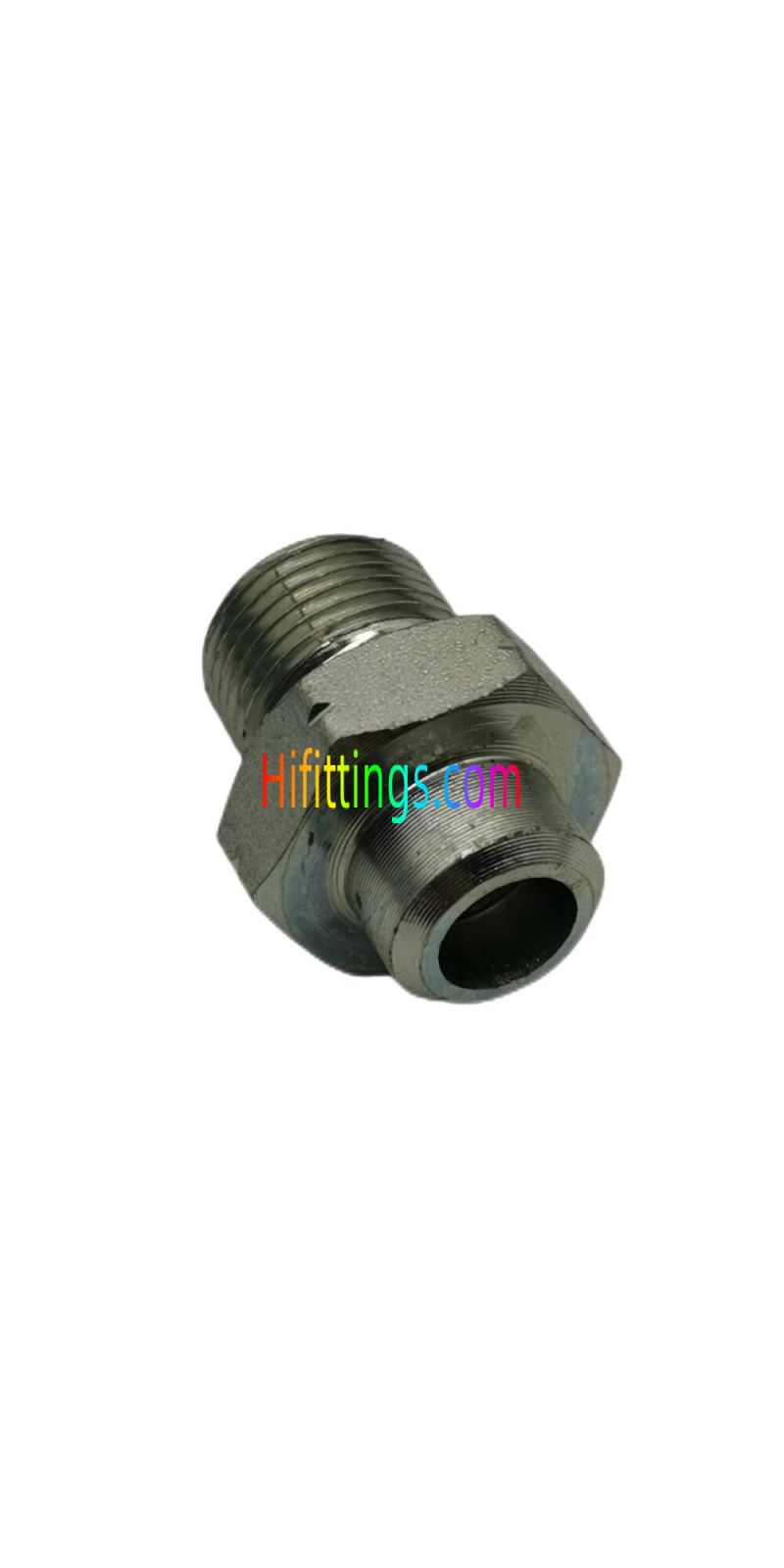

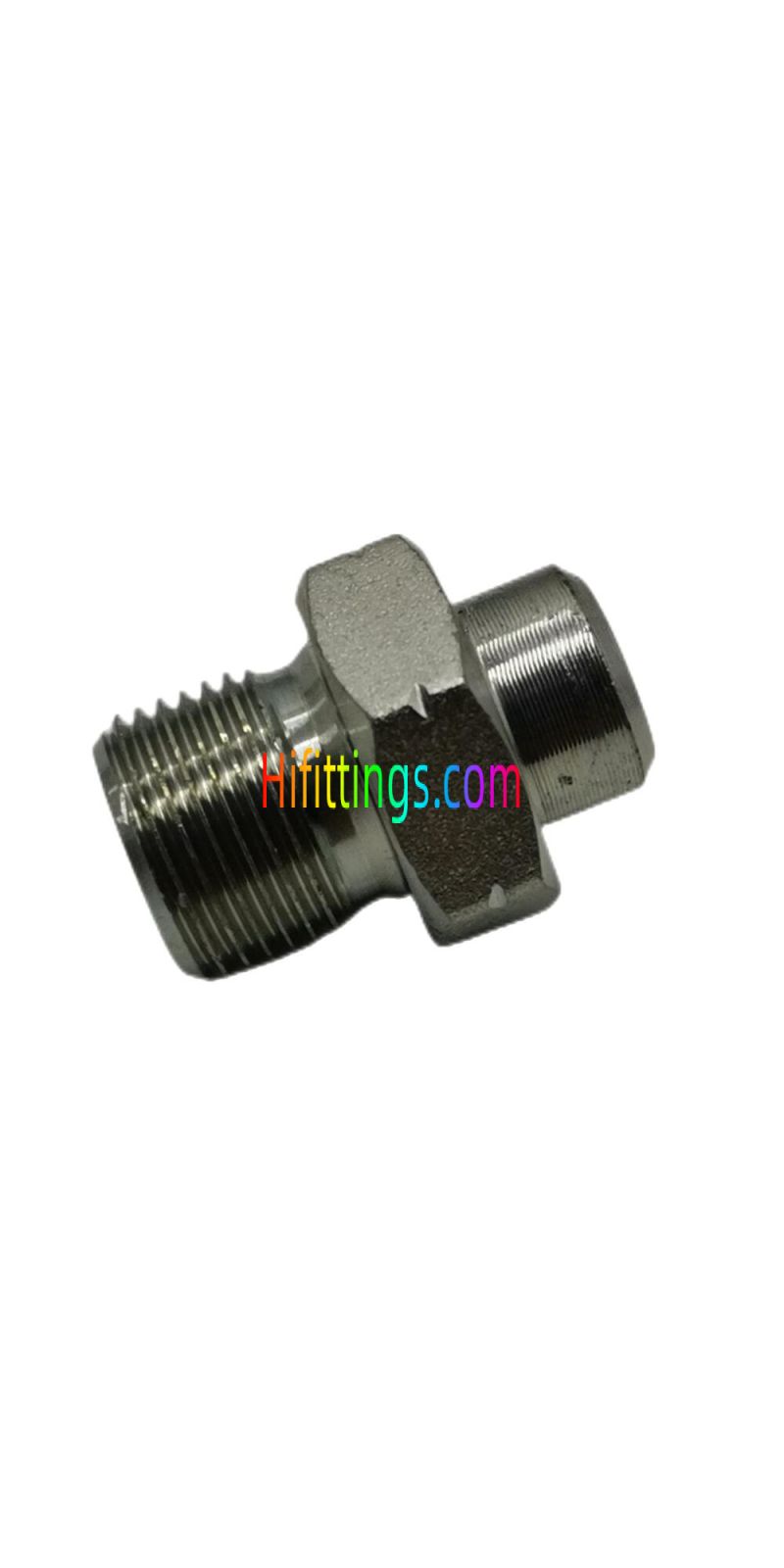

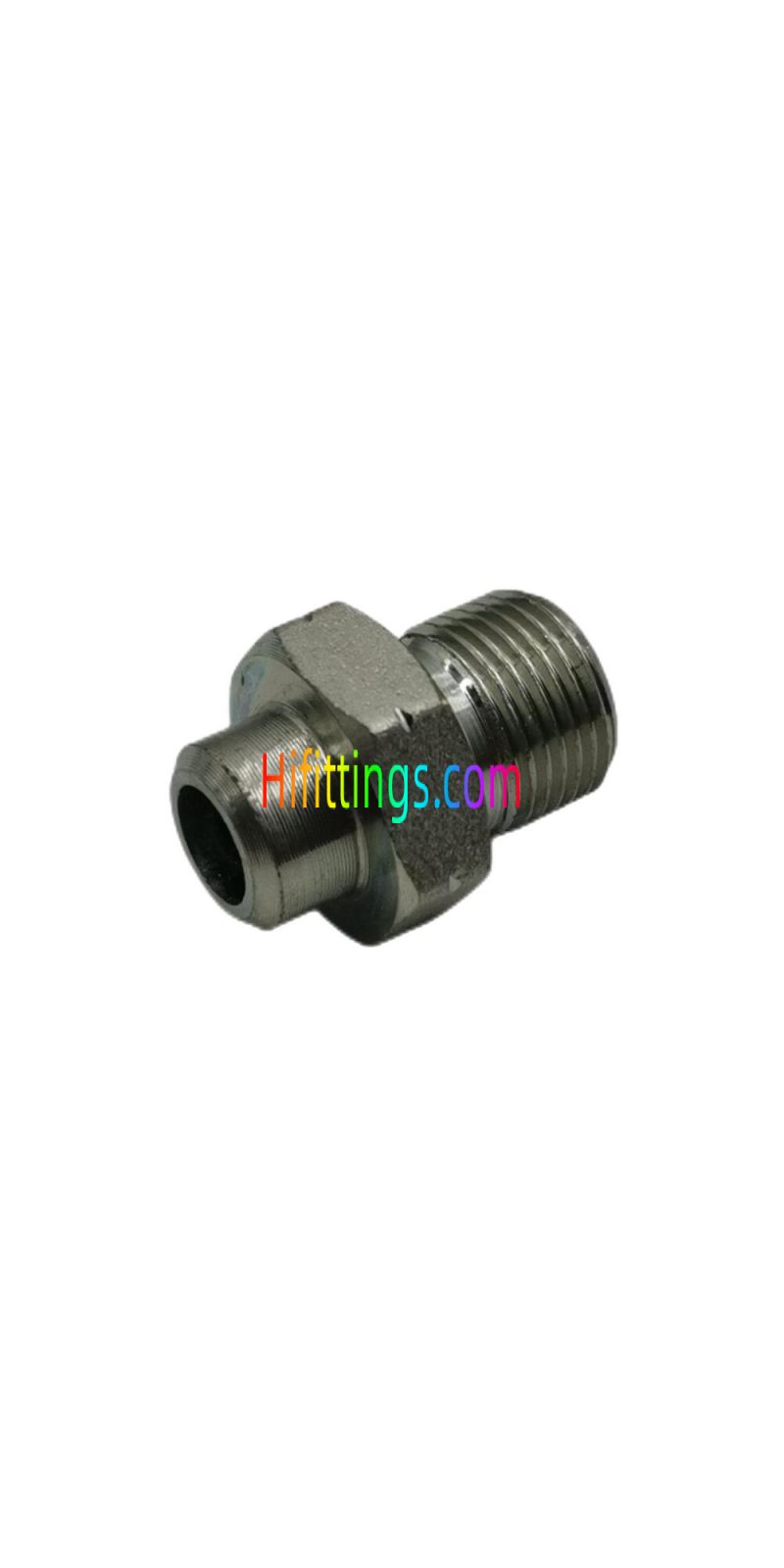

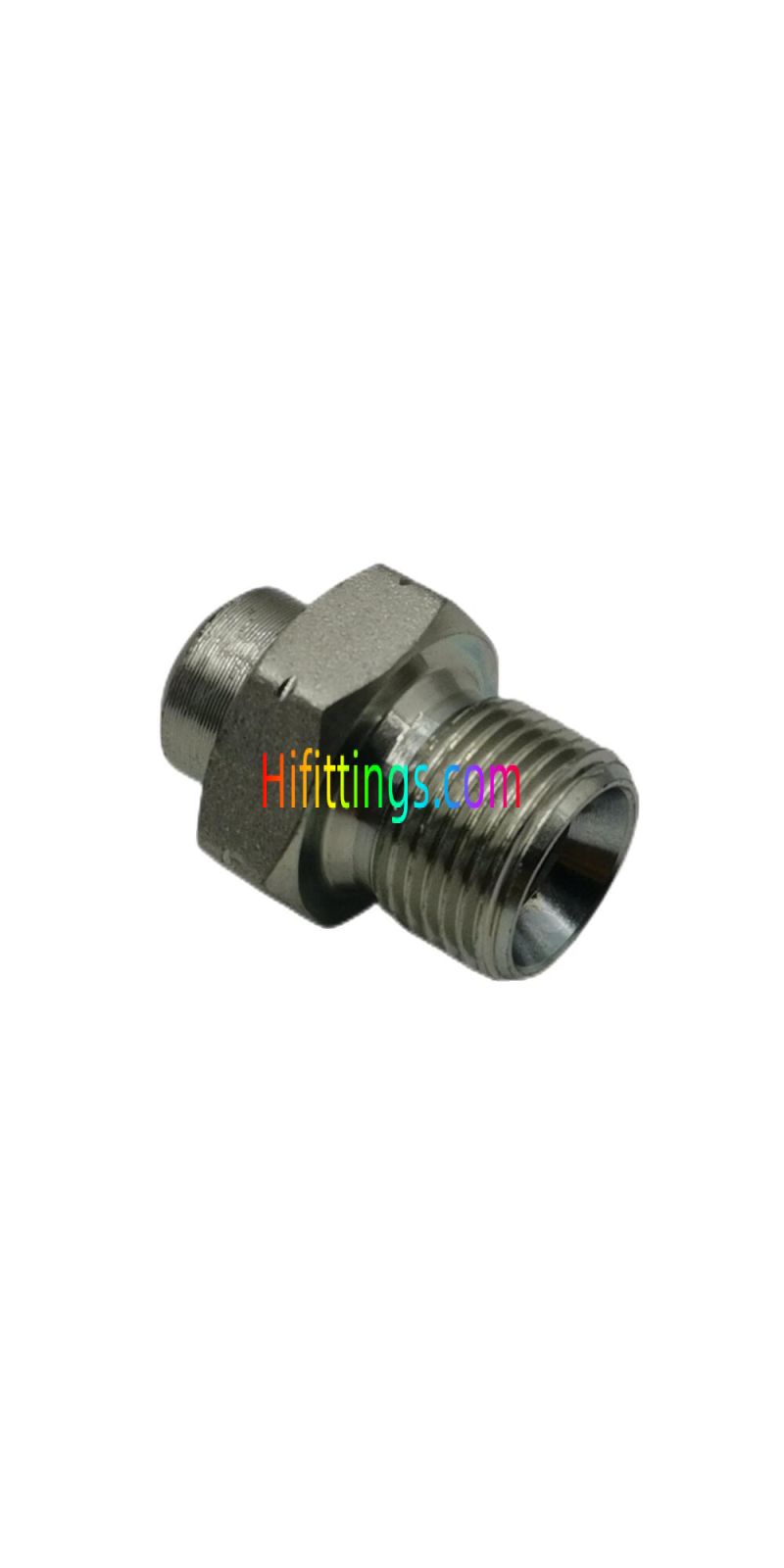

BSP Male Double Use For 60° Seat Or Bonded Seal /Butt-Weld Tube Fittings 1BW
|
Part NO. |
E |
Tube O.D. |
A |
B |
D |
L |
S1 |
Working Pressure bar |
|
1BW-04-10 |
G1/4"X19 |
10 |
12 |
7 |
10 |
25 |
19 |
PN345 |
|
1BW-06-14 |
G3/8"X19 |
14 |
13.5 |
8 |
14 |
29.5 |
22 |
PN345 |
|
1BW-08-18 |
G1/2"X14 |
18 |
16 |
10 |
18 |
36 |
27 |
PN345 |
|
1BW-12-22 |
G3/4"X14 |
22 |
18.5 |
10 |
22 |
39.5 |
32 |
PN275 |
|
1BW-12-28 |
G3/4"X14 |
28 |
18.5 |
12 |
28 |
41.5 |
32 |
PN275 |
|
1BW-16-28 |
G1"X11 |
28 |
20.5 |
12 |
28 |
45.5 |
41 |
PN205 |
|
1BW-16-30 |
G1"X11 |
30 |
20.5 |
12 |
30 |
45.5 |
41 |
PN205 |
|
1BW-20-34 |
G1.1/4"X11 |
34 |
20.5 |
14 |
34 |
49.5 |
50 |
PN170 |
|
1BW-20-36 |
G1.1/4"X11 |
36 |
20.5 |
14 |
36 |
49.5 |
50 |
PN170 |
|
1BW-20-42 |
G1.1/4"X11 |
42 |
20.5 |
16 |
42 |
51.5 |
50 |
PN170 |
|
1BW-24-36 |
G1.1/2"X11 |
36 |
23 |
14 |
36 |
52 |
55 |
PN105 |
|
1BW-24-42 |
G1.1/2"X11 |
42 |
23 |
16 |
42 |
54 |
55 |
PN105 |
|
1BW-24-50 |
G1.1/2"X11 |
50 |
23 |
16 |
50 |
54 |
55 |
PN105 |
| Форма | Straight |
|---|---|
| Тип крепления | Cone, Weld |
| Тип резьбы | Male |
| Connection Type | BSP, Weld |
