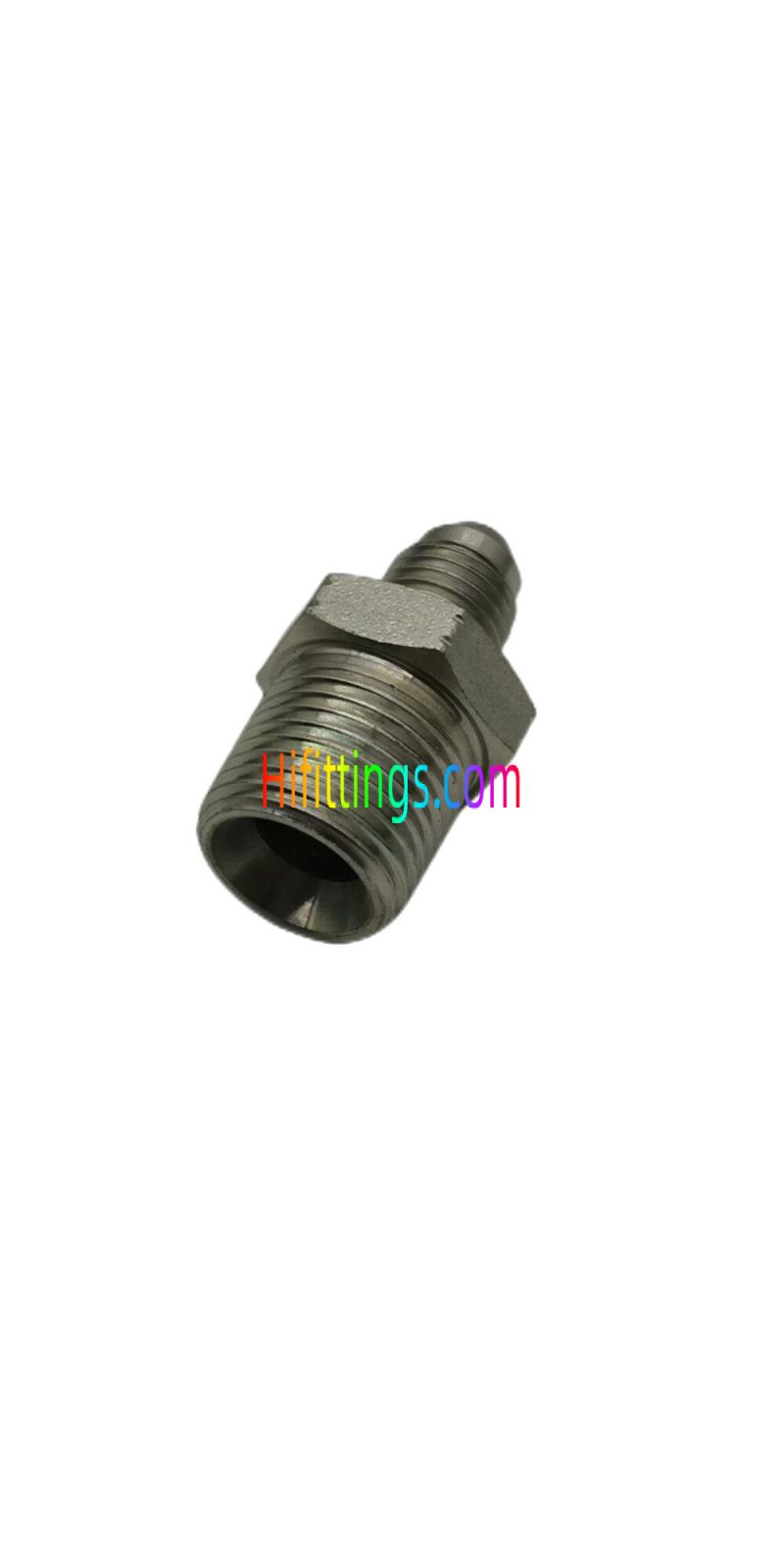

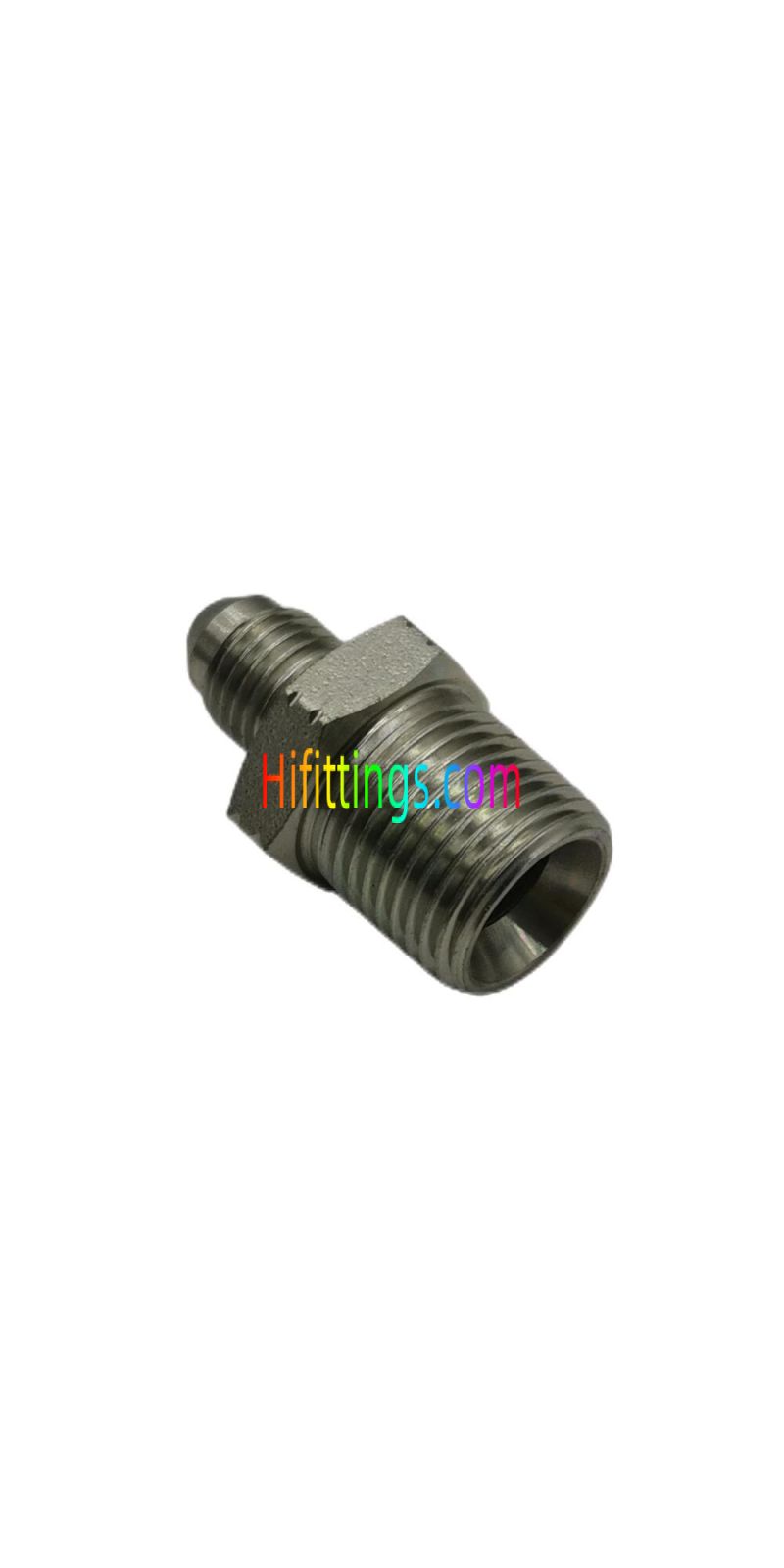

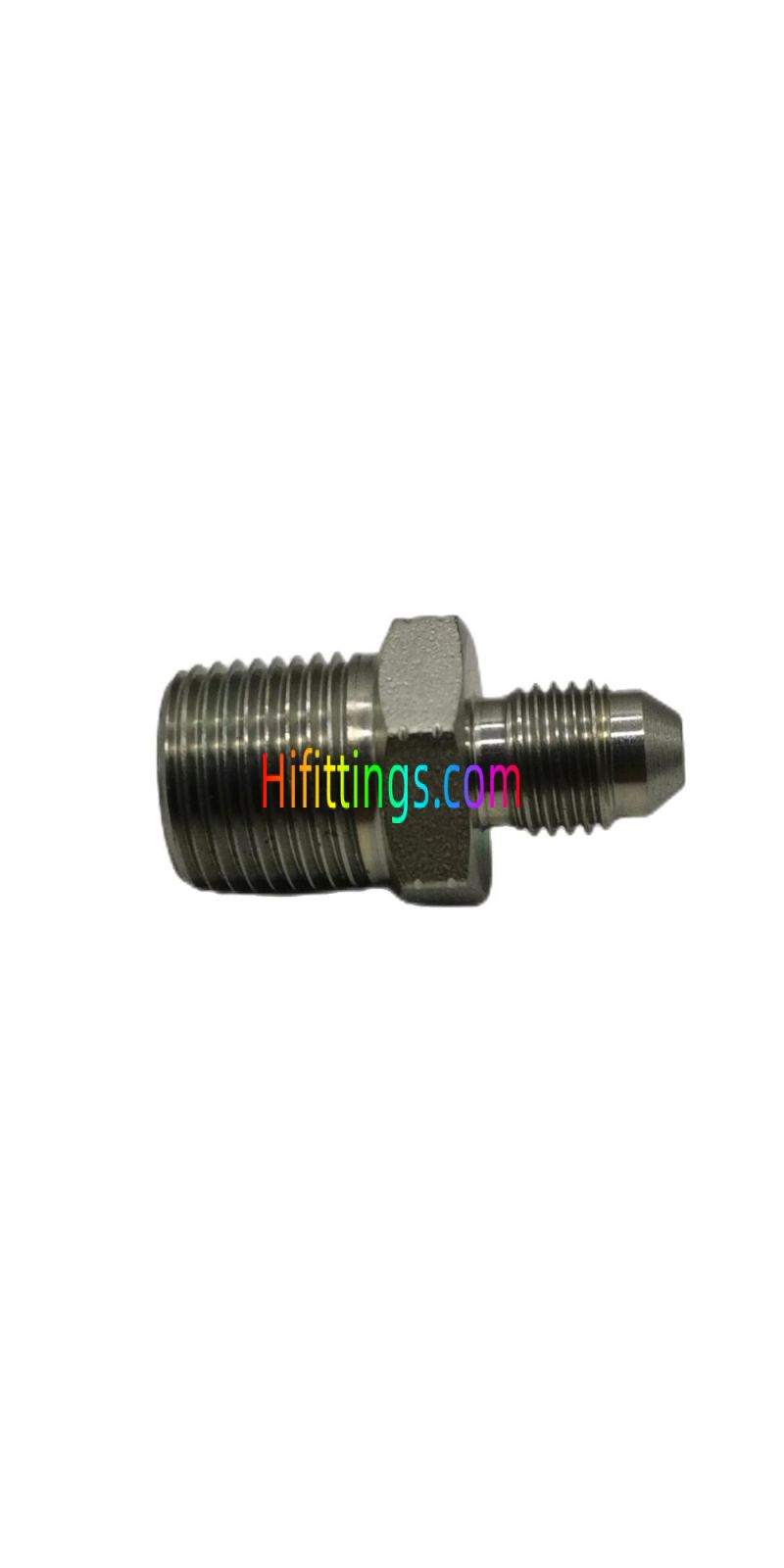

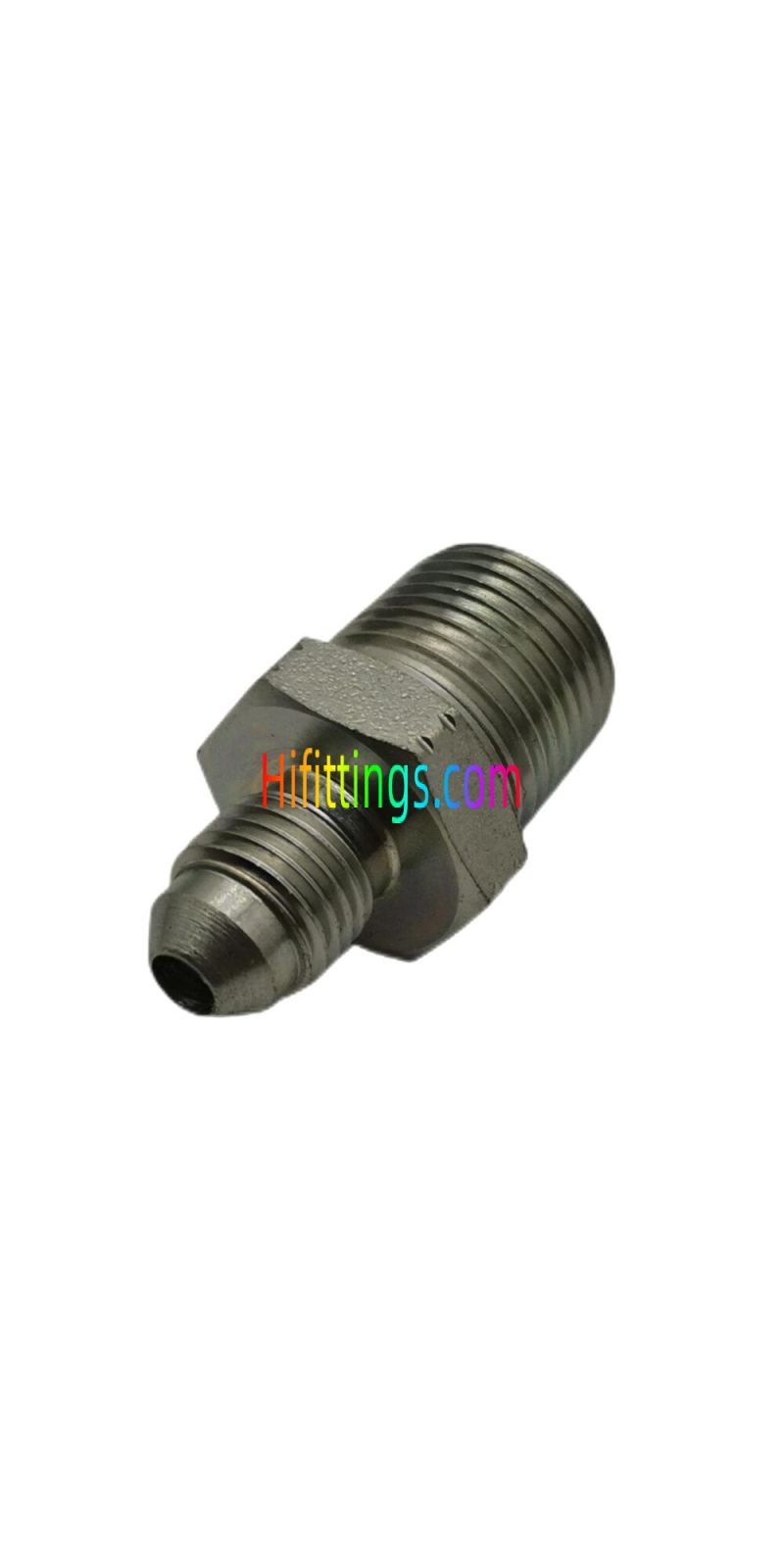

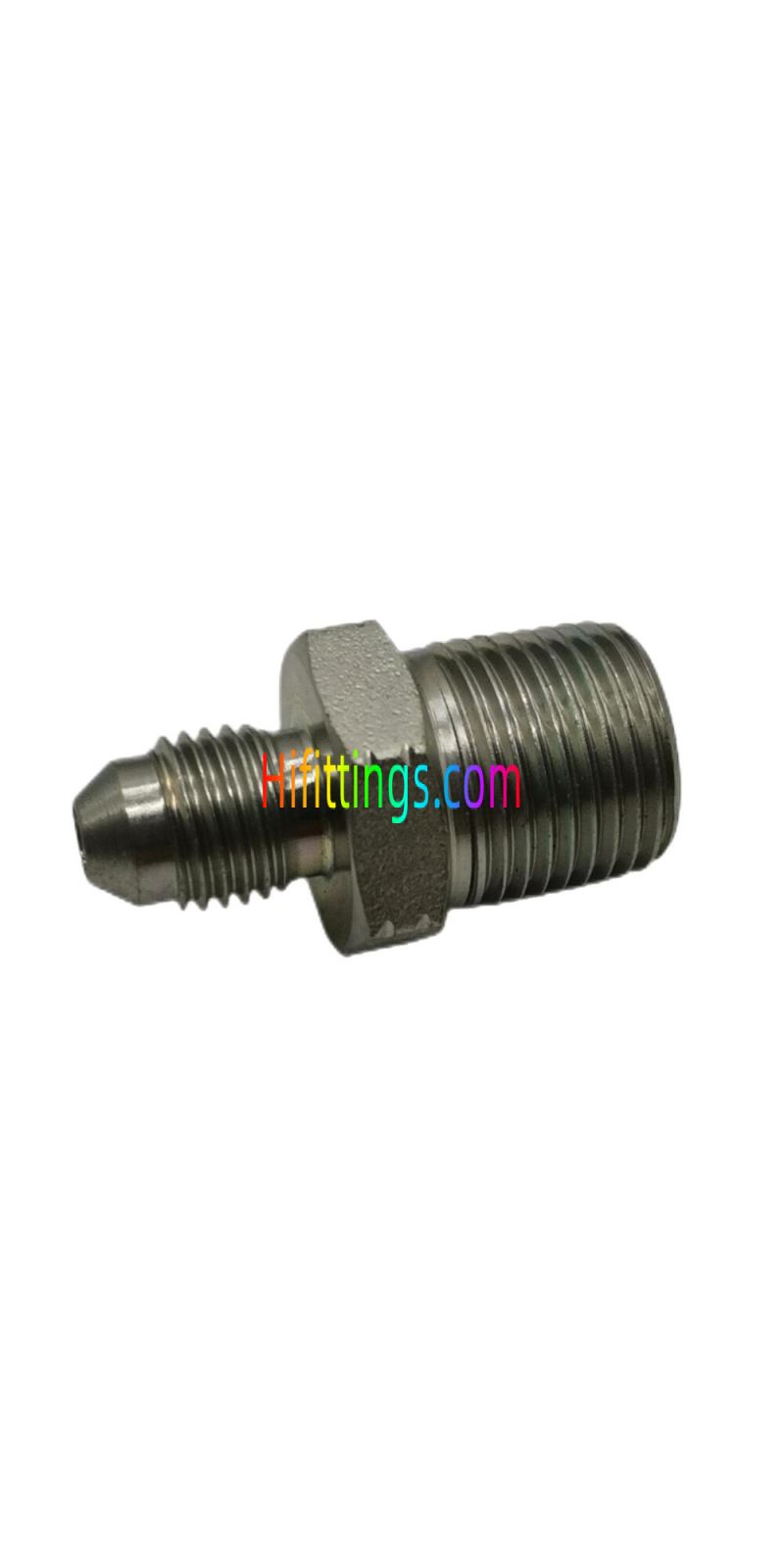

Straight NPT Male / JIC Male 74° Cone Flared Hydraulic Tube Fittings 1JN
|
Part NO. |
E |
F |
A |
B |
L |
S1 |
Working Pressure bar |
|
1JN-02 |
5/16"X24 |
Z1/8"X27 |
11.4 |
10.5 |
28 |
12 |
PN345 |
|
1JN-04-02 |
7/16"X20 |
Z1/8"X27 |
14 |
10.5 |
30.5 |
12 |
PN345 |
|
1JN-04 |
7/16"X20 |
Z1/4"X18 |
14 |
15 |
35 |
17 |
PN275 |
|
1JN-04-06 |
7/16"X20 |
Z3/8"X18 |
14 |
16 |
36 |
19 |
PN210 |
|
1JN-04-08 |
7/16"X20 |
Z1/2"X14 |
14 |
19.5 |
41.5 |
24 |
PN210 |
|
1JN-05-04 |
1/2"X20 |
Z1/4"X18 |
14 |
15 |
35 |
17 |
PN275 |
|
1JN-05-06 |
1/2"X20 |
Z3/8"X18 |
14 |
16 |
36 |
19 |
PN210 |
|
1JN-05-08 |
1/2"X20 |
Z1/2"X14 |
14 |
19.5 |
41.5 |
24 |
PN210 |
|
1JN-06-04 |
9/16"X18 |
Z1/4"X18 |
14.1 |
15 |
34.5 |
17 |
PN275 |
|
1JN-06 |
9/16"X18 |
Z3/8"X18 |
14.1 |
16 |
36 |
19 |
PN210 |
|
1JN-06-08 |
9/16"X18 |
Z1/2"X14 |
14.1 |
19.5 |
41.5 |
24 |
PN210 |
|
1JN-08-04 |
3/4"X16 |
Z1/4"X18. |
16.7 |
15 |
39 |
22 |
PN275 |
|
1JN-08-06 |
3/4"X16 |
Z3/8"X18 |
16.7 |
16 |
40 |
22 |
PN210 |
|
1JN-08 |
3/4"X16 |
Z1/2"X14 |
16.7 |
19.5 |
44 |
24 |
PN210 |
|
1JN-08-12 |
3/4"X16 |
Z3/4"X14 |
16.7 |
19.5 |
46.5 |
30 |
PN170 |
|
1JN-10-06 |
7/8"X14 |
Z3/8"X18 |
19.3 |
16 |
43.5 |
24 |
PN210 |
|
1JN-10-08 |
7/8"X14 |
Z1/2"X14 |
19.3 |
19.5 |
47 |
24 |
PN210 |
|
1JN-10-12 |
7/8"X14 |
Z3/4"X14 |
19.3 |
19.5 |
49 |
30 |
PN170 |
|
1JN-12-08 |
1.1/16"X12 |
Z1/2"X14 |
21.9 |
19.5 |
0.51 |
30 |
PN210 |
|
1JN-12 |
1.1/16"X12 |
Z3/4"X14 |
21.9 |
19.5 |
51.5 |
30 |
PN170 |
|
1JN-12-16 |
1.1/16"X12 |
Z1"X11.5 |
21.9 |
25.5 |
58.5 |
36 |
PN140 |
|
1JN-12-20 |
1.1/16UX12 |
Z1.1/4"X11.5 |
21.9 |
26.5 |
61.5 |
46 |
PN80 |
|
1JN-14-12 |
1.3/16"X12 |
Z3/4"X14 |
22.6 |
19.5 |
53 |
32 |
PN170 |
|
1JN-16-12 |
1.5/16"X12 |
Z3/4"X14 |
23.1 |
19.5 |
53.5 |
36 |
PN170 |
|
1JN-16 |
1.5/16"X12 |
Z1"X11.5 |
23.1 |
25.5 |
58.5 |
36 |
PN140 |
|
1JN-16-20 |
1.5/16"X12 |
Z1.1/4"X11.5 |
23.1 |
26.5 |
62.5 |
46 |
PN80 |
|
1JN-16-24 |
1.5/16"X12 |
Z1.1/2"X11,5 |
23.1 |
27,5 |
65.5 |
50 |
PN70 |
|
1JN-20-16 |
1.5/8"X12 |
Z1"X11.5 |
245 |
25.5 |
63 |
46 |
PN140 |
|
1JN-20 |
1.5/8"X12 |
Z1.1/4"X11.5 |
24.3 |
26.5 |
63.5 |
46 |
PN80 |
|
1JN-20-24 |
1.5/8"X12 |
Z1.1/2"X11.5 |
24.3 |
27.5 |
67 |
50 |
PN70 |
|
1JN-24-20 |
1.7/8"X12 |
Z1.1/4"X11.5 |
27.5 |
26.5 |
69 |
50 |
PN80 |
|
1JN-24 |
1.7/8"X12 |
Z1.1/2"X11.5 |
27.5 |
27.5 |
70 |
50 |
PN70 |
|
1JN-24-32 |
1.7/8"X12 |
Z2"X11.5 |
27.5 |
27.5 |
72 |
65 |
PN70 |
|
1JN-32 |
2.1/2"X12 |
Z2"X11.5 |
33.9 |
27.5 |
78.5 |
65 |
PN70 |
|
1JN-32-24 |
2.1/2"X12 |
Z1.1/2"X11.5 |
33.9 |
27.5 |
78.5 |
65 |
PN70 |
|
Note：1.Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube. 2.PN = Nominal Pressure |
|||||||
| Форма | Straight |
|---|---|
| Тип крепления | Cone Flared |
| Тип резьбы | Male |
| Connection Type | JIC, NPT |
